Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1986
>>
Sprint L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
A/C Amplifier
A/C Amplifier

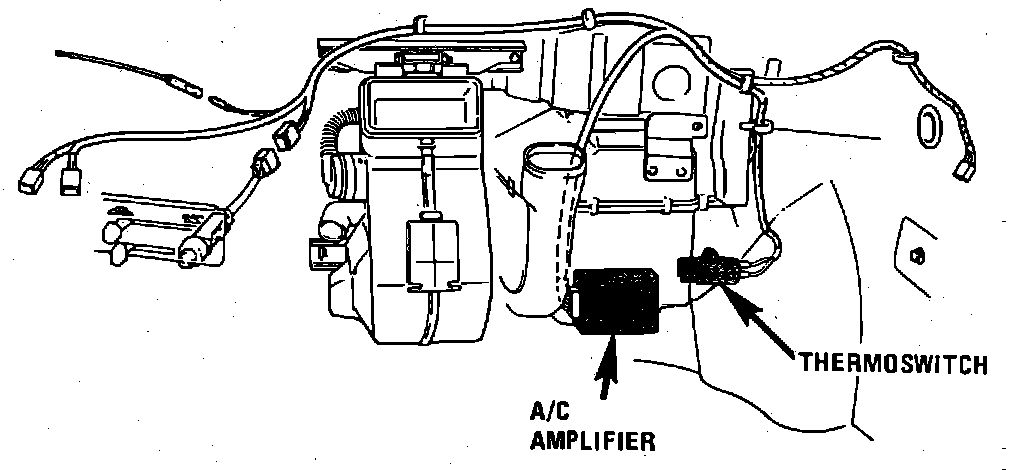

A/C Components Under I/P:
Behind Right Side Of I/P
