Brake Fluid Level Switch
Brake Fluid Level Switch

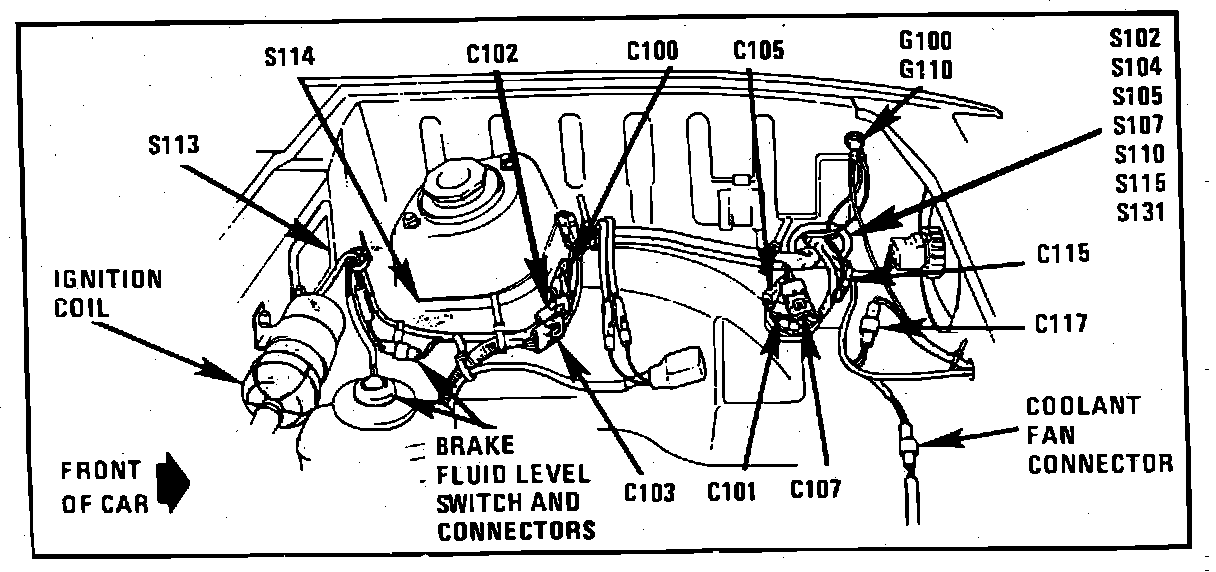

Lower Left Side Of Engine Compartment:
LH Side Of Engine Compartment
