Electronic Spark Control Module: Testing and Inspection

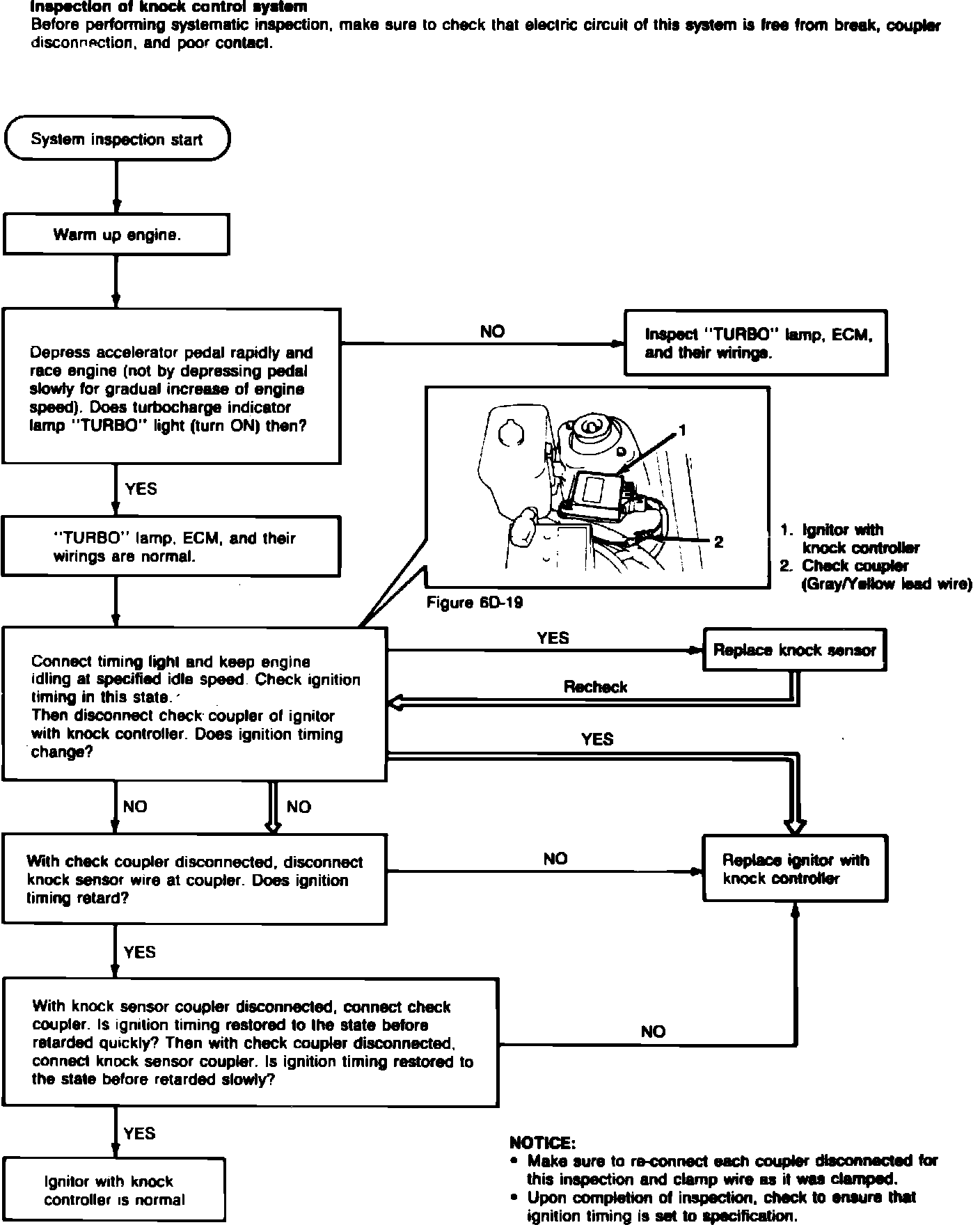

Fig. 9 Knock control system diagnostic chart. 1987 - 88 models w/EFI & turbocharger:

DIAGNOSIS
When diagnosing the knock control system, refer to Fig. 9.
