Design and Clearance Specifications
MX-1 AUTOMATIC TRANSMISSIONCLEARANCE AND DESIGN SPECIFICATIONS

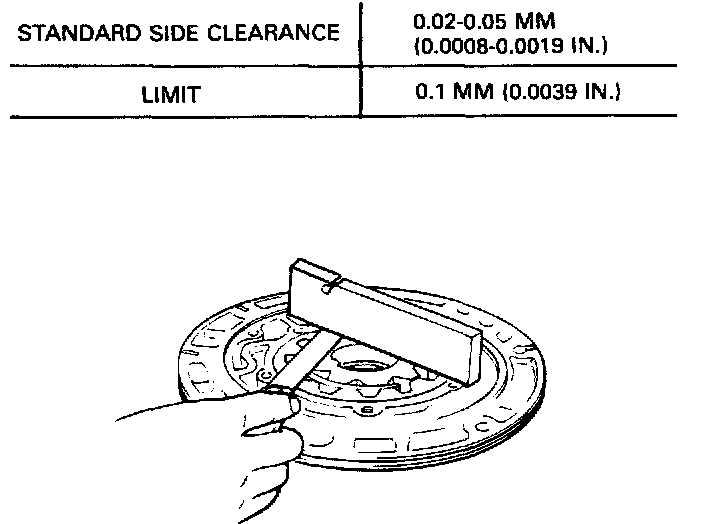

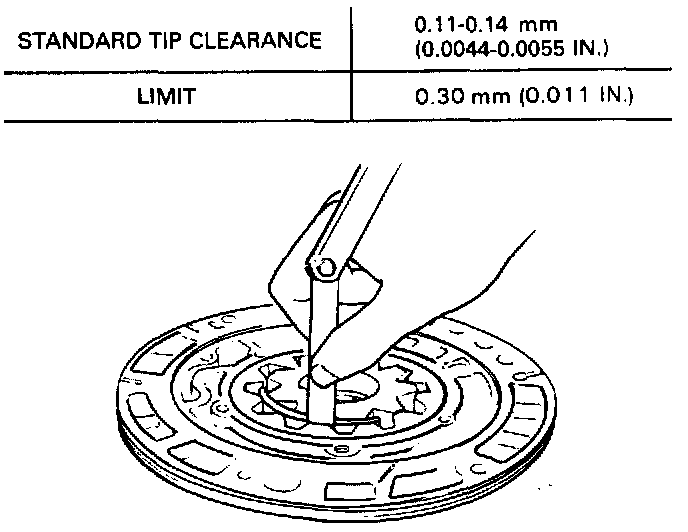

Pump Clearance Specifications:
Continued:

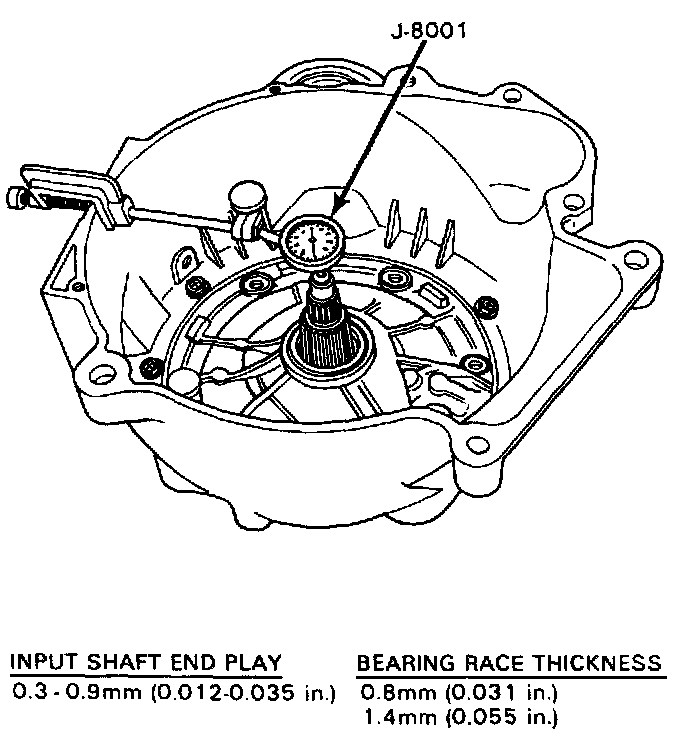

Input Shaft Specifications:

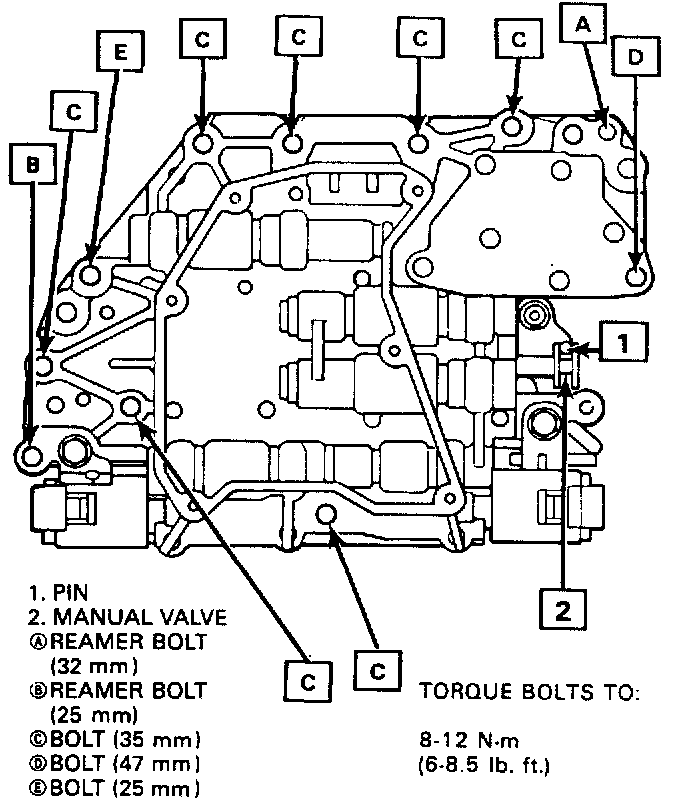

Lower Valve Body Torque Specifications:

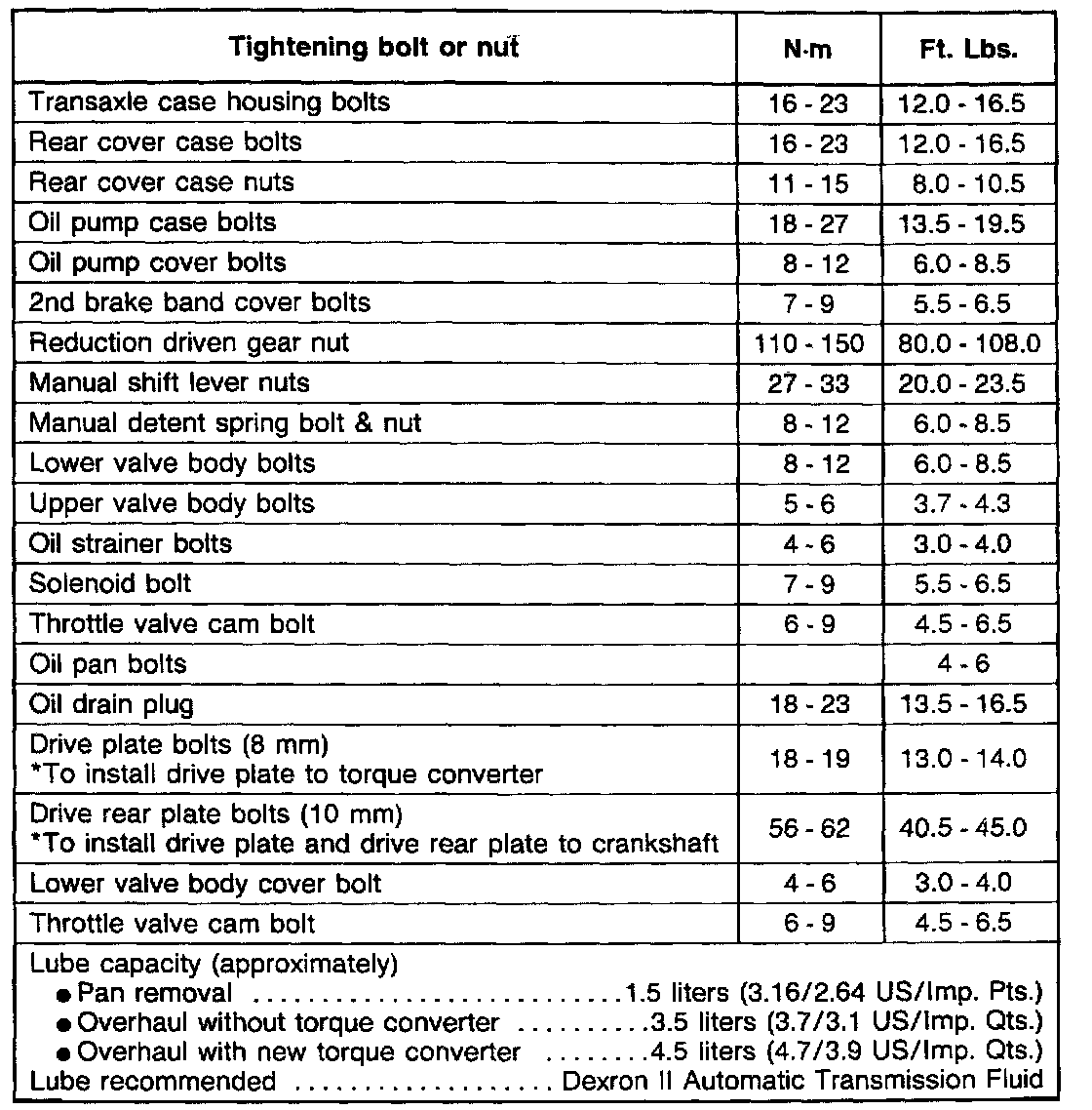

Torque Table:
CLEARANCE AND DESIGN SPECIFICATIONS
