Torque Specifications
MX-1 TRANSMISSION SPECIFICATIONSTORQUE SPECIFICATIONS
^ Drive Plate Bolts - 19 N.m (14 lb ft)
^ Mounting Member Bolts - 55 N.m (40 if. lbs.)
^ Transaxle Mounting Nuts - 45 N.m (33 lb ft)
^ Transaxle Mounting Bolts (8mm) - 55 N.m (40 lb ft)
^ Transaxle Mounting Nuts - 55 N.m (40 if. lbs.)
^ Stabilizer Shaft Mount Bolts - 42 N.m (31 lb ft)
^ Ball Stud Bolt - 60 N.m (44 lb ft)
^ Wheel Nuts - 55 N.m (40 lb ft)

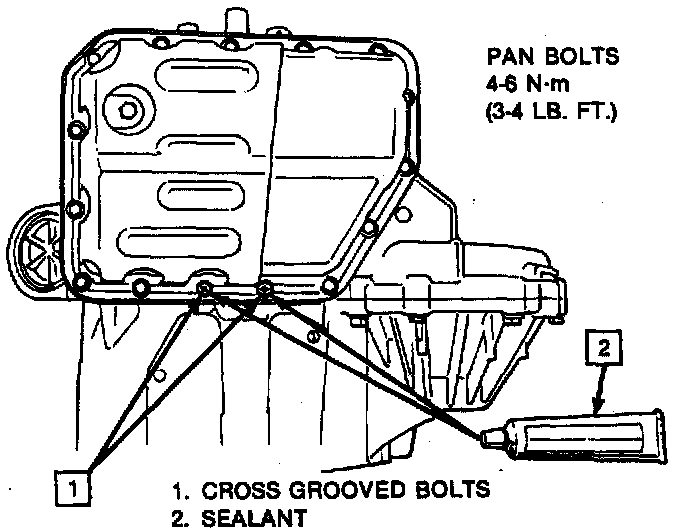

Oil Pan Bolt Torque:

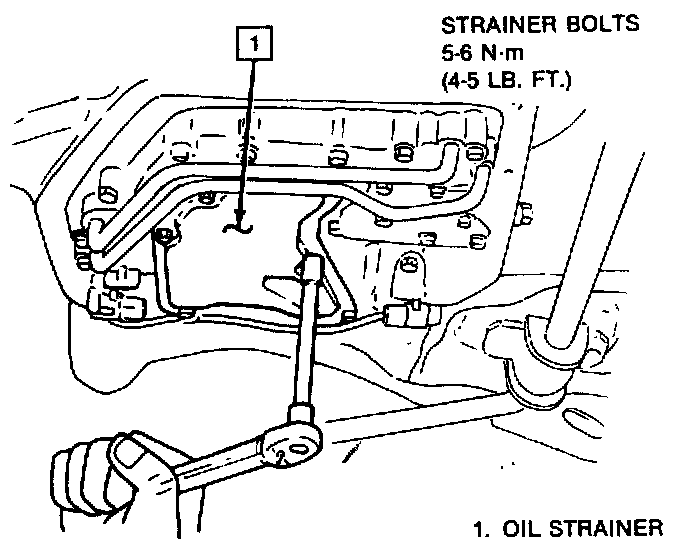

Filter Bolt Torque:

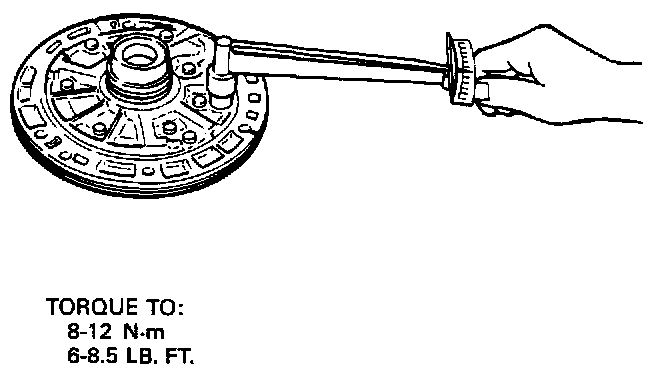

Pump Cover Bolt Torque:

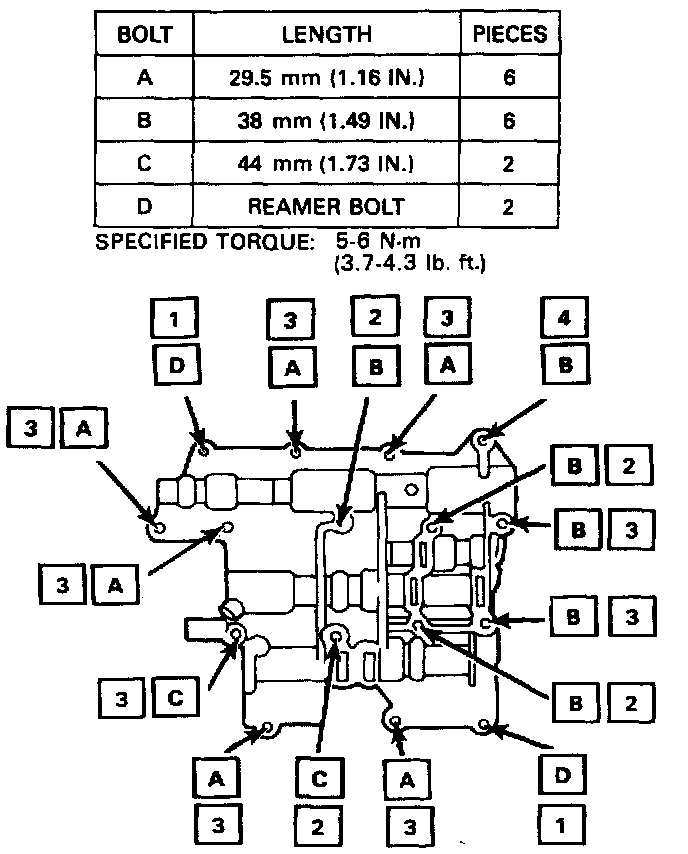

Valve Body Bolt Torque:

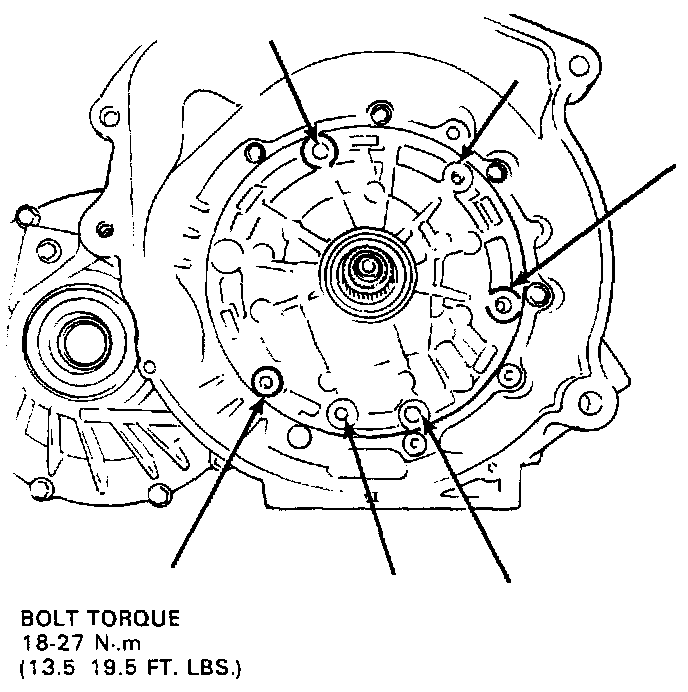

Pump Bolt Torque:
