Connecting Rod: Service and Repair

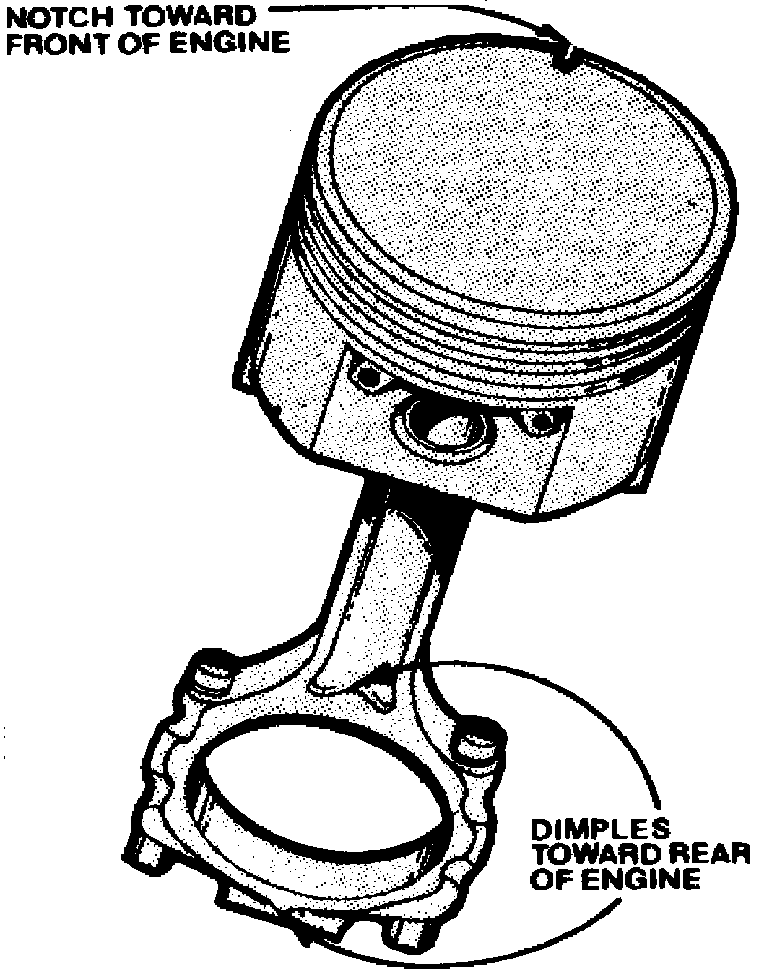

Fig. 9 Piston & rod assembly:
Assemble piston to rod with notch on piston facing toward front of engine and the raised notch side of rod at bearing end facing toward rear of engine, Fig. 9.
Assemble piston to rod with notch on piston facing toward front of engine and the raised notch side of rod at bearing end facing toward rear of engine, Fig. 9.
