Figure 26-Heater Cover Removal:

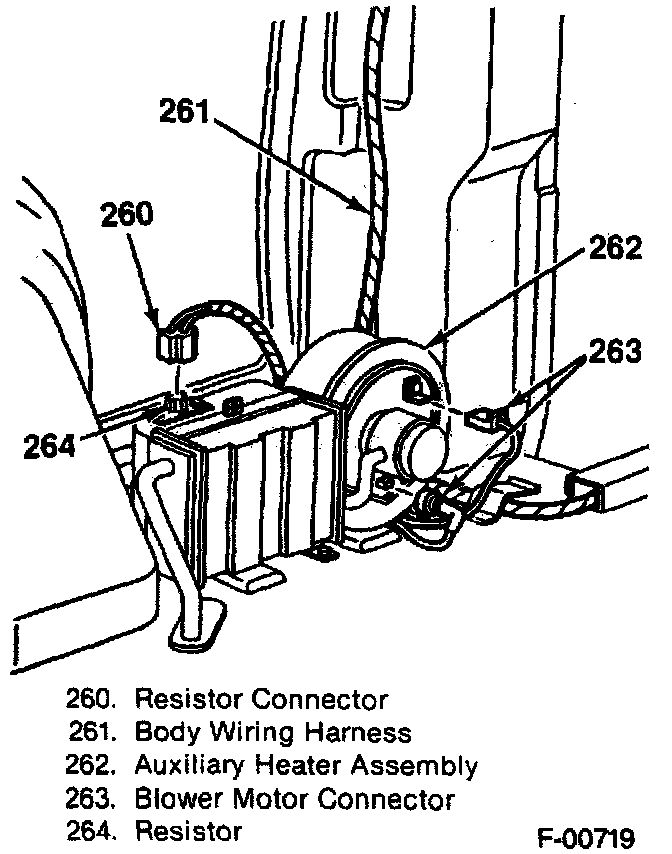

Figure 27-Heater Wiring - Resistor Replacement:

Figure 28-Heater Core Replacement:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Cover (250).
3. Electrical wiring (260 and 263).
4. Fan motor screws (271).
5. Motor (270).

INSTALL OR CONNECT
1. Motor (270).
2. Screws (271).
3. Electrical wiring (260 and 263).
4. Cover (250).
5. Negative battery cable.
