Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1987
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Engine Controls
Engine Controls

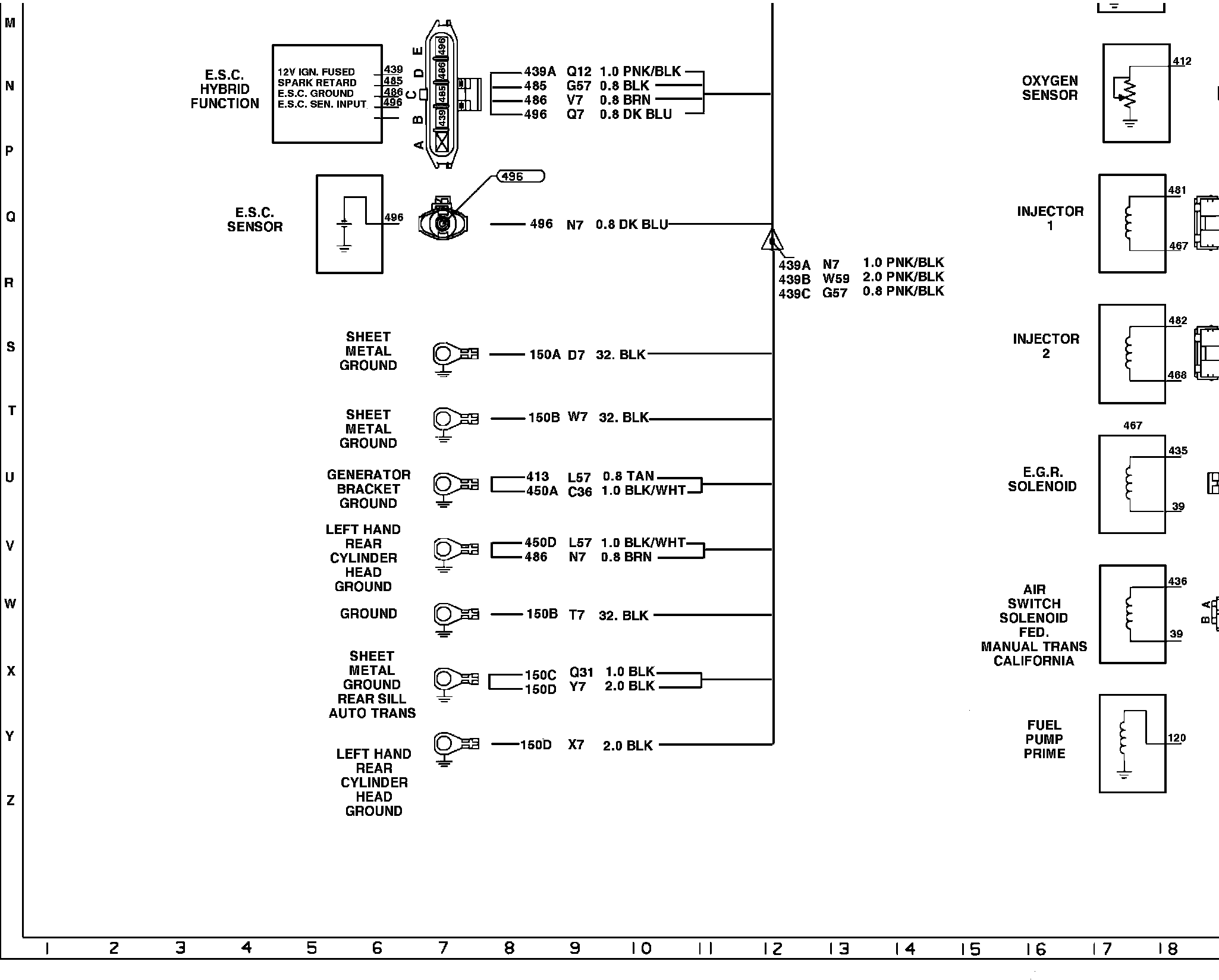

͑[$�[$u�[$~�[$�\$O\$1�\$Engine Harness V-6 TBI (LB4):
