Cold Start & Emission Controls
Cold Start & Emission Controls

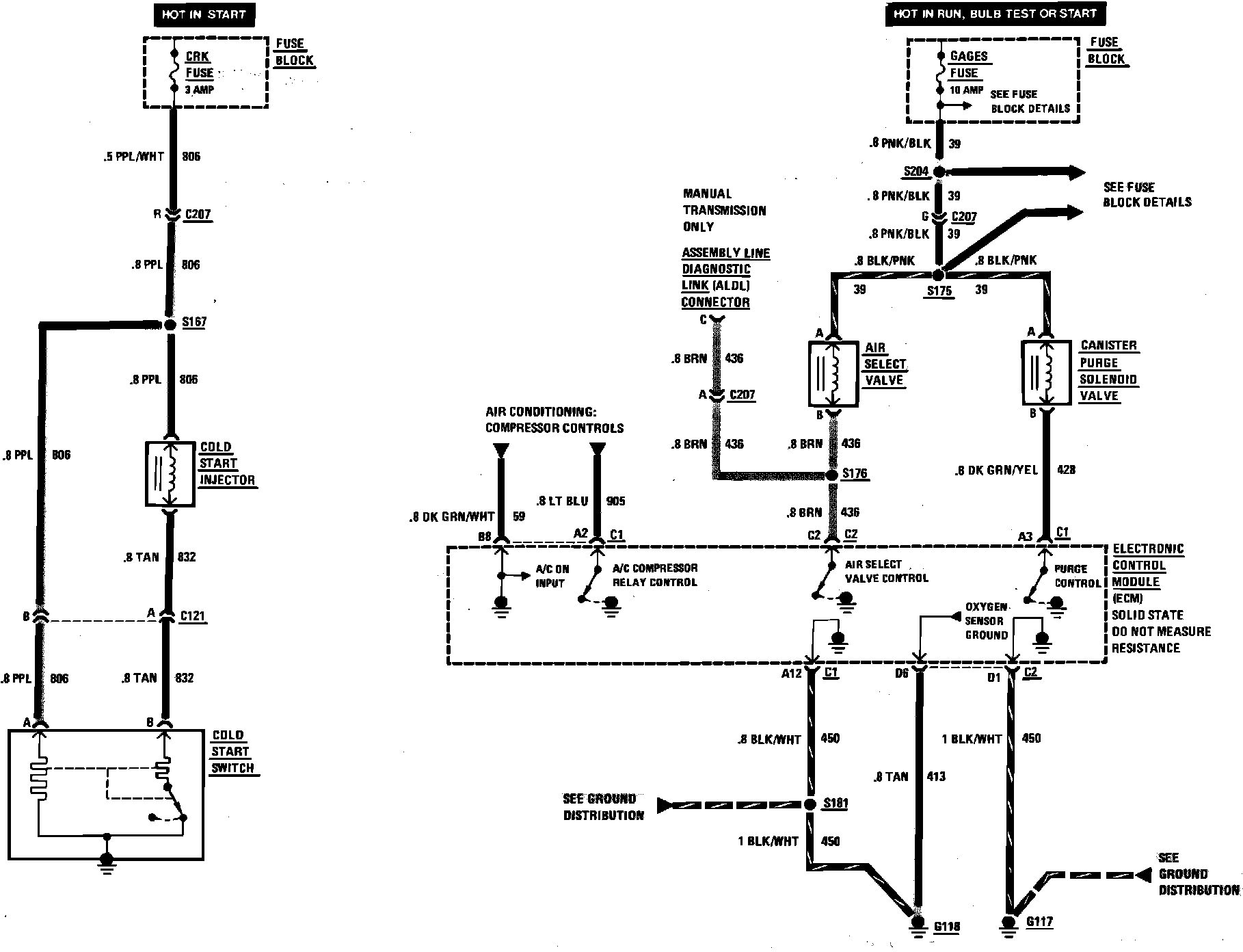

Fuel Injection/Multi-Port Wiring Circuit (Cold Start & Emission Control). W/V6-173/2.8L:
