Mass Air Flow Control

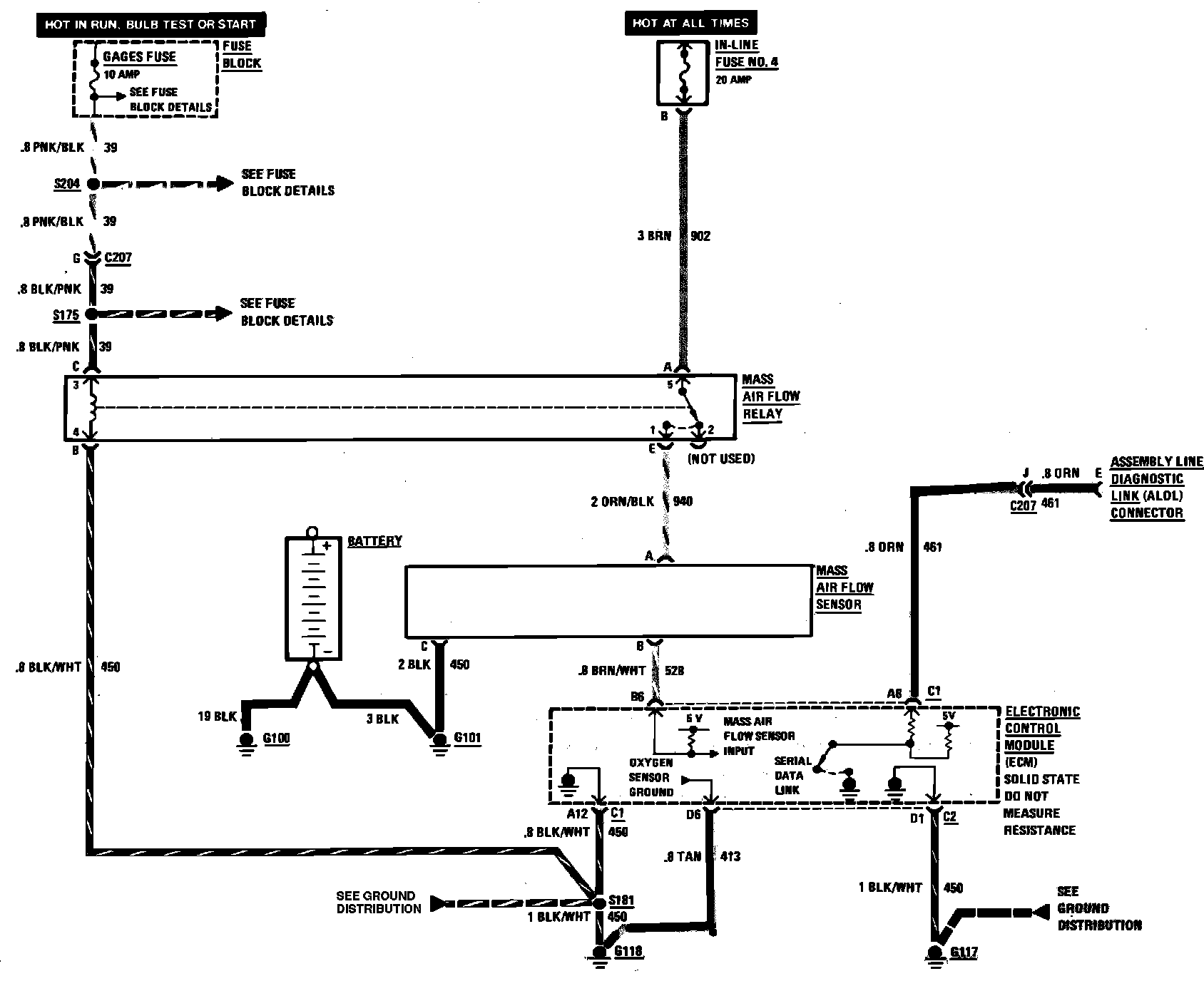

Fuel Injection/Multi-Port Wiring Circuit (Mass Air Flow Control). W/V6-173/2.8L:
