Ignition, Service Engine Soon & Tach

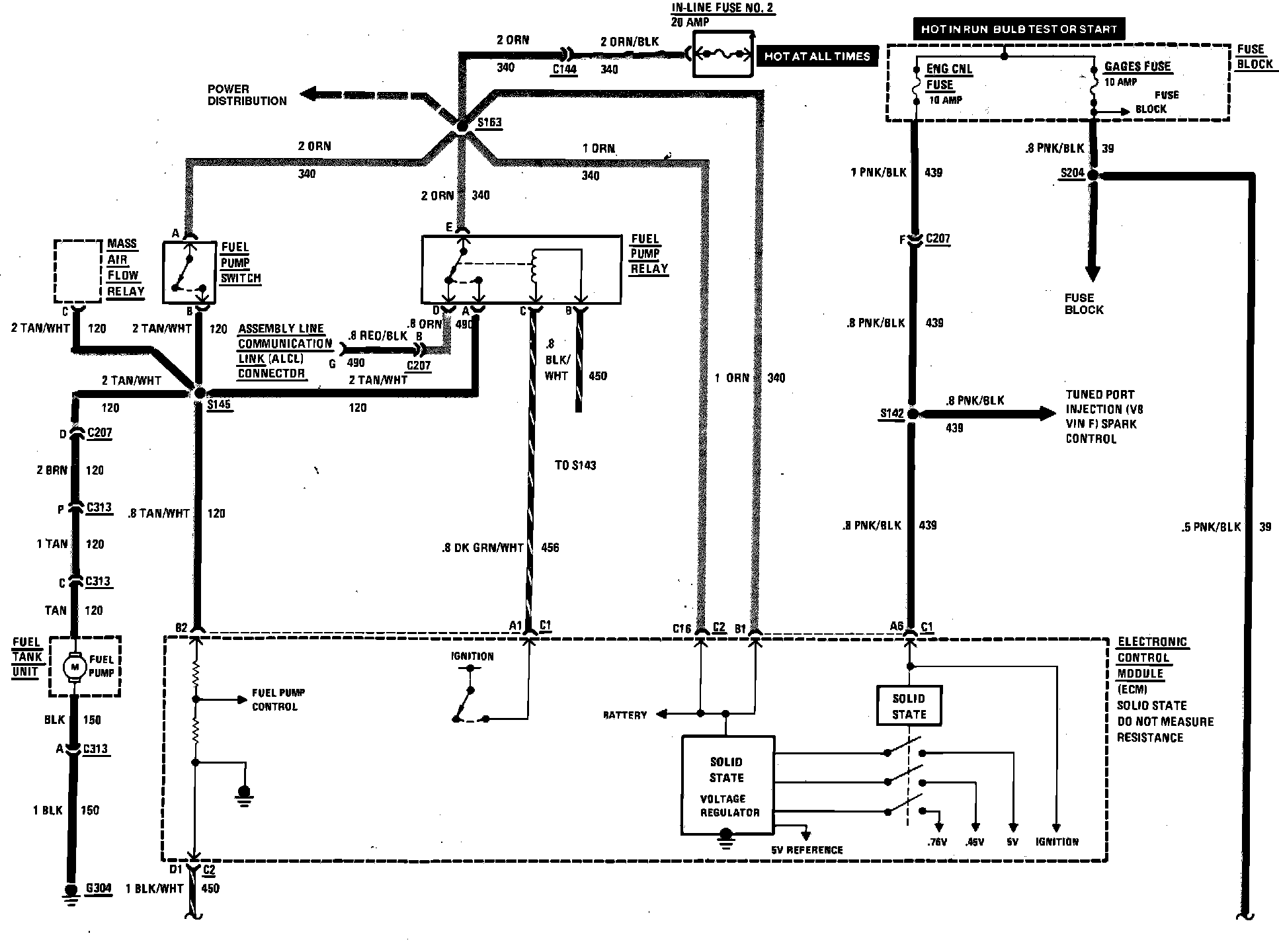

Fuel Injection/Tuned Port Wiring Circuit (Ignition, Service Engine Soon Indicator & Tachometer). W/V8-305/5.0L (VIN F):

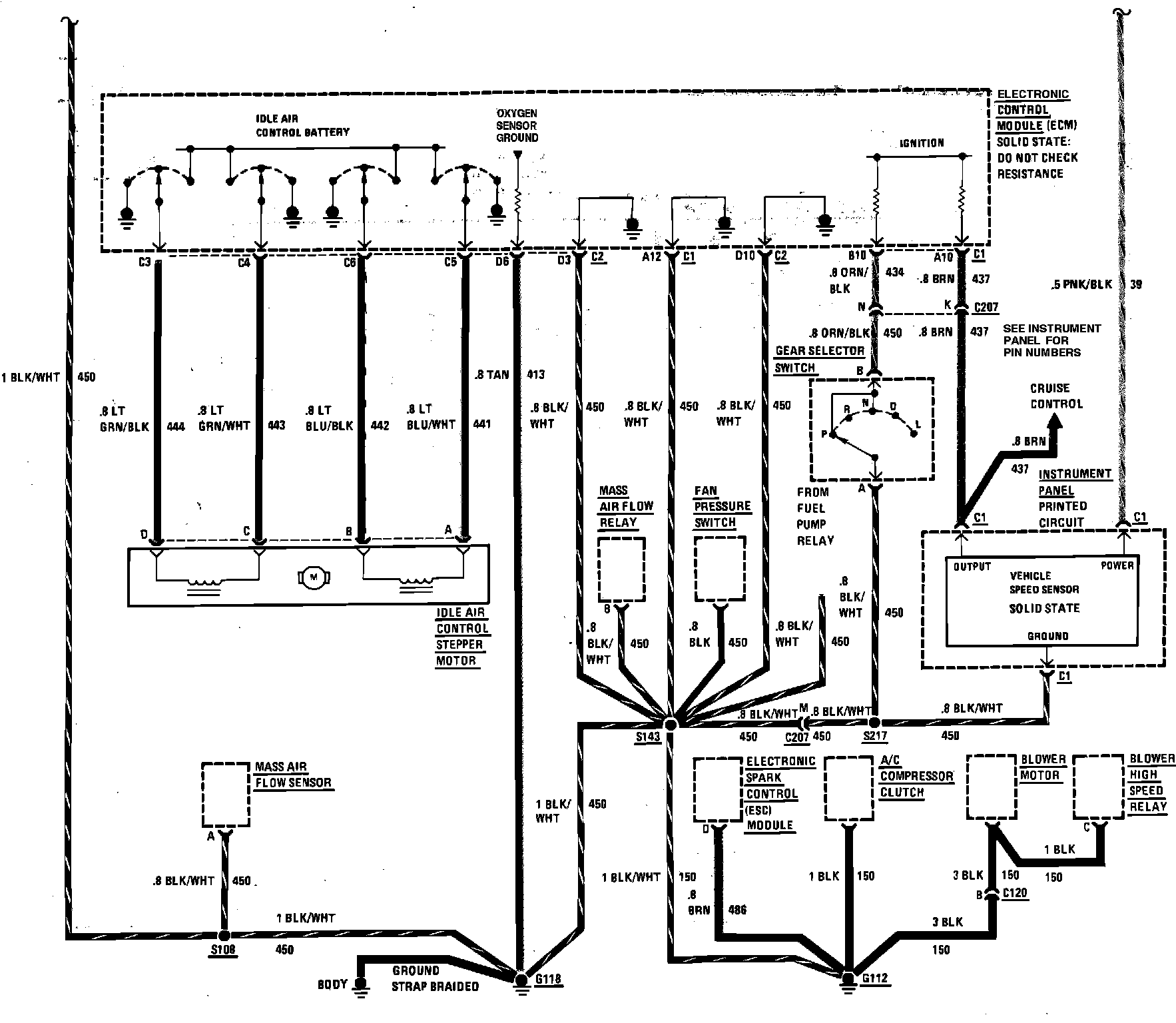

Fuel Injection/Tuned Port Wiring Circuit (Ignition, Service Engine Soon Indicator & Tachometer). W/V8-305/5.0L (VIN F):
