Electrical Diagrams

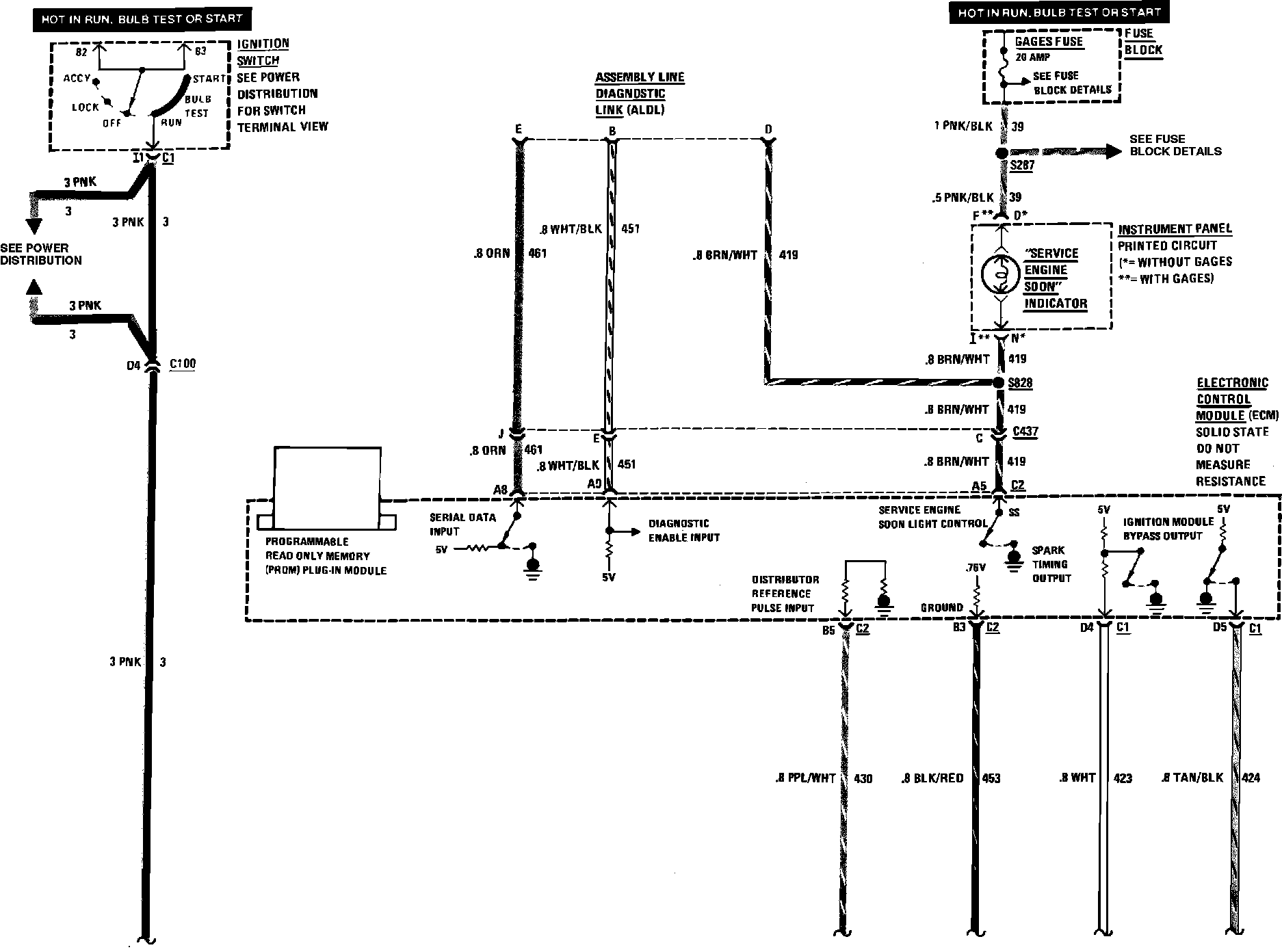

Throttle Body Injection Wiring Circuit (Ignition & Service Engine Soon Lamp):

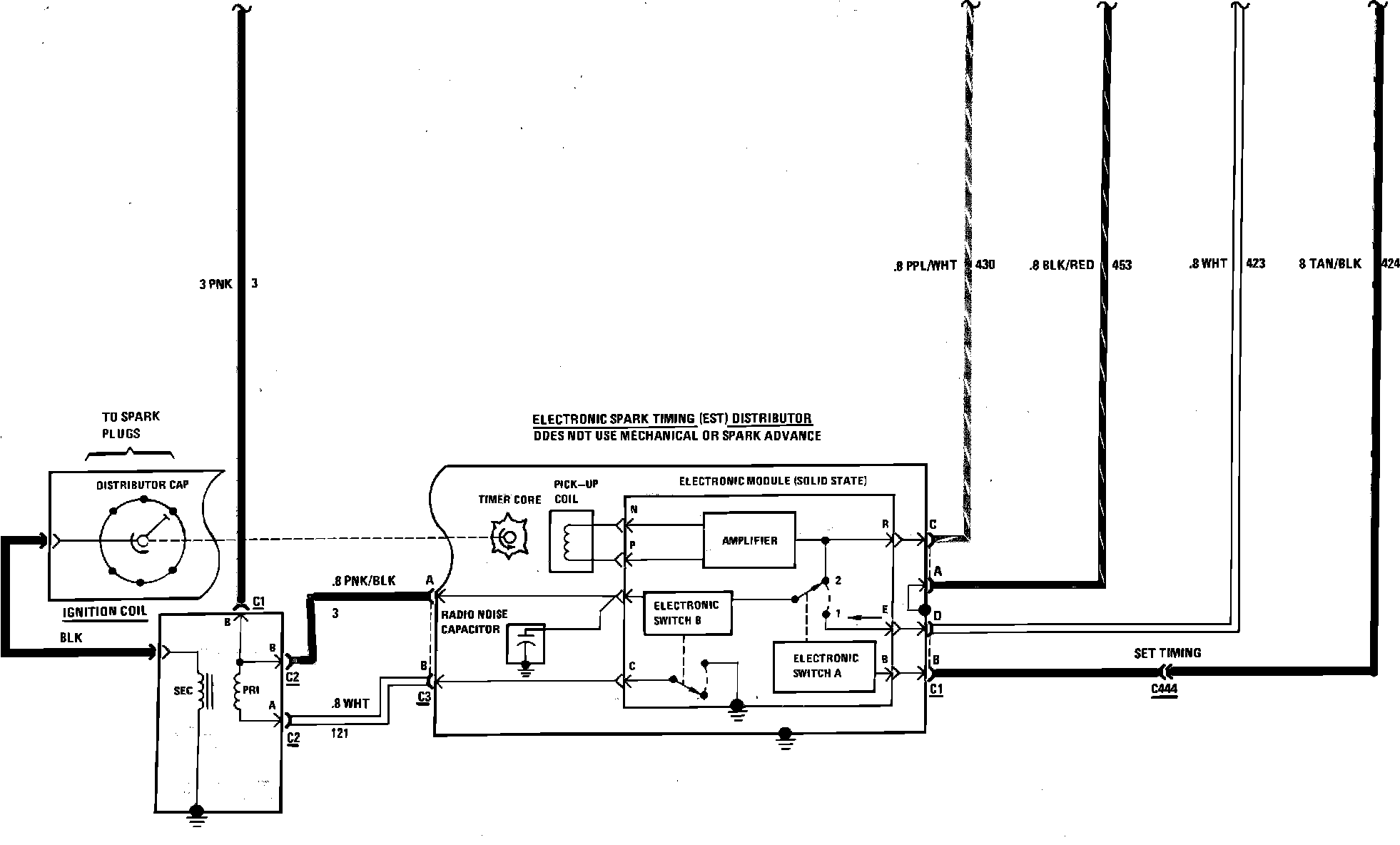

Throttle Body Injection Wiring Circuit (Ignition & Service Engine Soon Lamp):
