Home >> Chevrolet >> 1987 >> Cavalier/Z24 V6-173 2.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Compressor Controls >> Part 2 of 2

Part 2 of 2

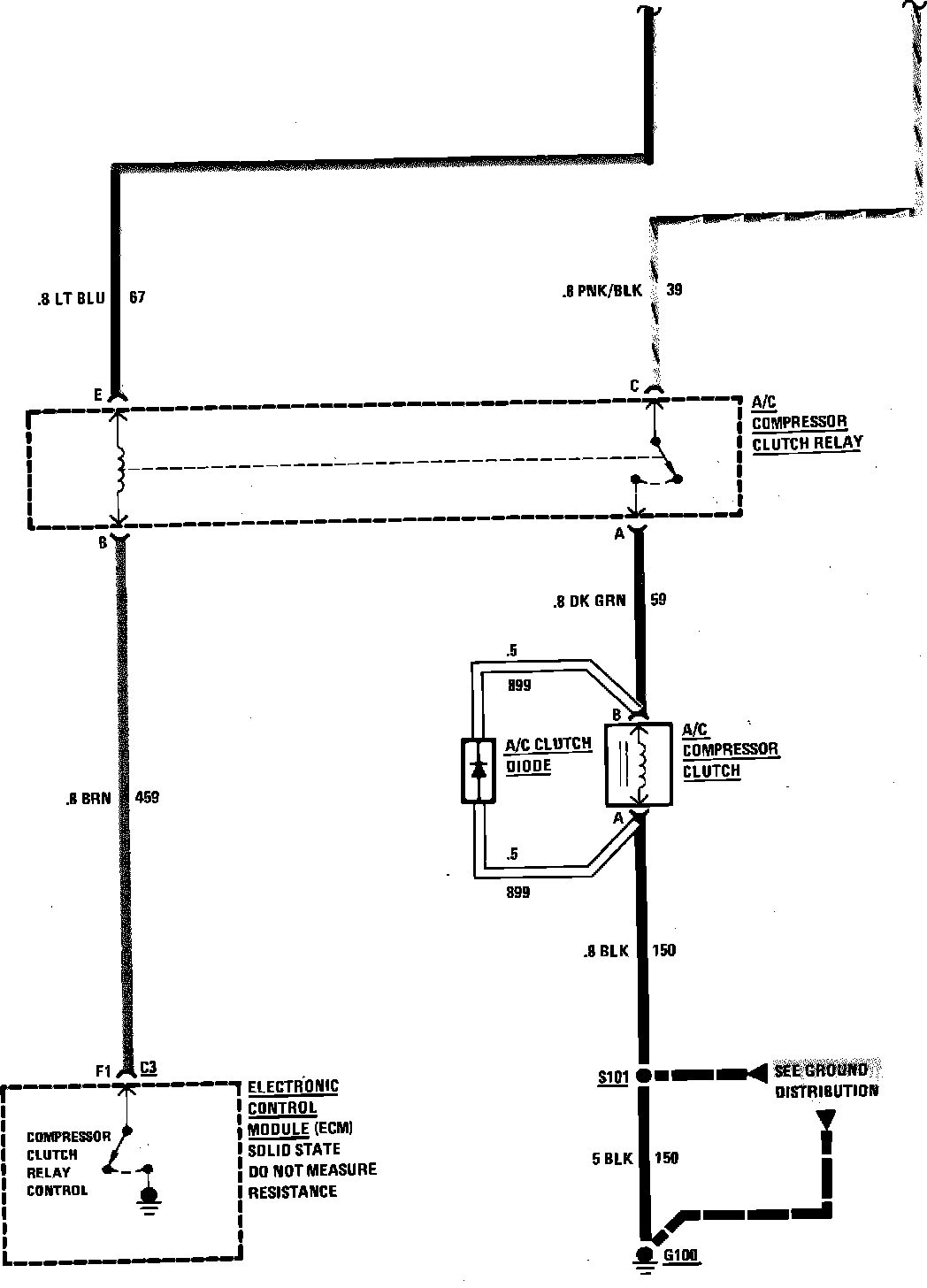

Fig. 14 Air Conditioning Wiring Circuit Compressor Control (Part 2 Of 2) W/V6-173/2.8L Engine:
