Radio Receiver - Removal Procedure

Number: 87-15

Section: 8C

Date: NOV., 1986
Subject: RADIO RECEIVER REMOVAL PROCEDURE


Model and Year: 1987 CELEBRITY


TO: ALL CHEVROLET DEALERS

Radio Removal Access:

For the 1987 model year there have been some changes to the Celebrity instrument panel design, which may make removal of the radio receiver more difficult than in the past.

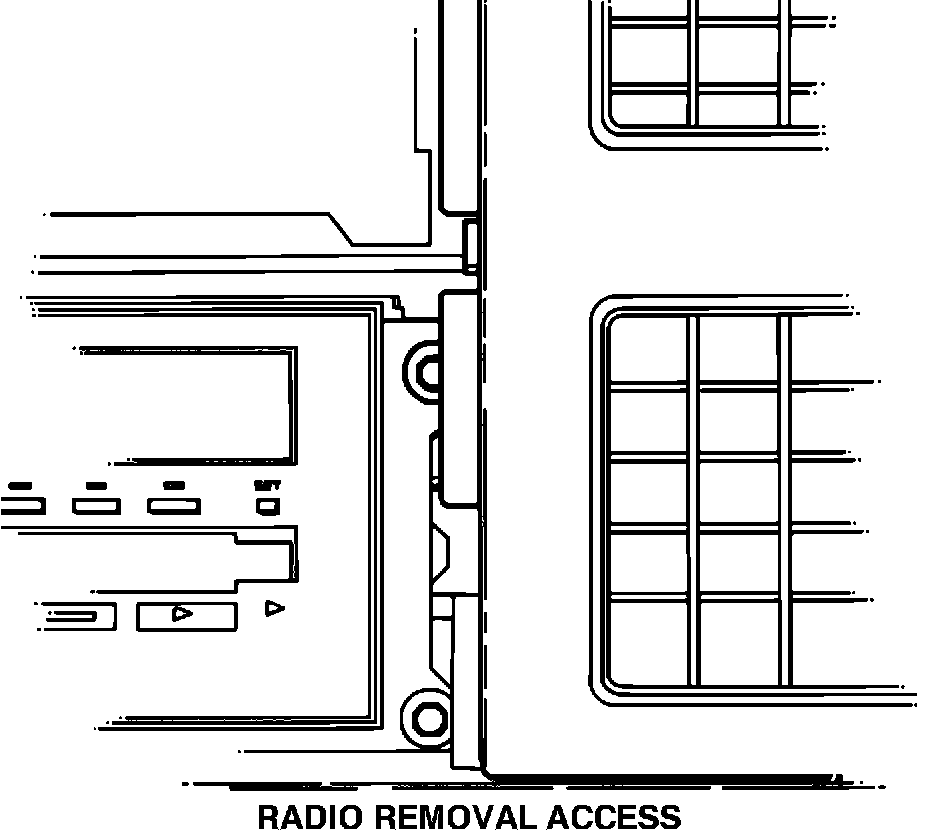

There are two tabs on the right hand instrument panel trim pad which may partially cover the radio mounting bracket and screws. (See illustration) If it becomes necessary to remove the radio, wedge a stiff putty knife or similar tool between the radio bracket and the tabs and push the tabs to the right. This will allow access to the screws and easier radio removal.

If needed, refer to the 1987 Celebrity Service Manual for the existing radio removal procedure.
