Instrument Panel - Heat Distortion
87chevy22Number: 87-248-10
Section: 10
Date: NOV., 1987
Subject INSTRUMENT PANEL HEAT DISTORTED
Model and Year: 1987 CELEBRITY
TO: ALL CHEVROLET DEALERS
Owners and/or dealers may comment about instrument cluster or right hand I/P trim pad warpage due to heat distortion.
This condition can be repaired by replacing the warped parts with new parts available through GMSPO.

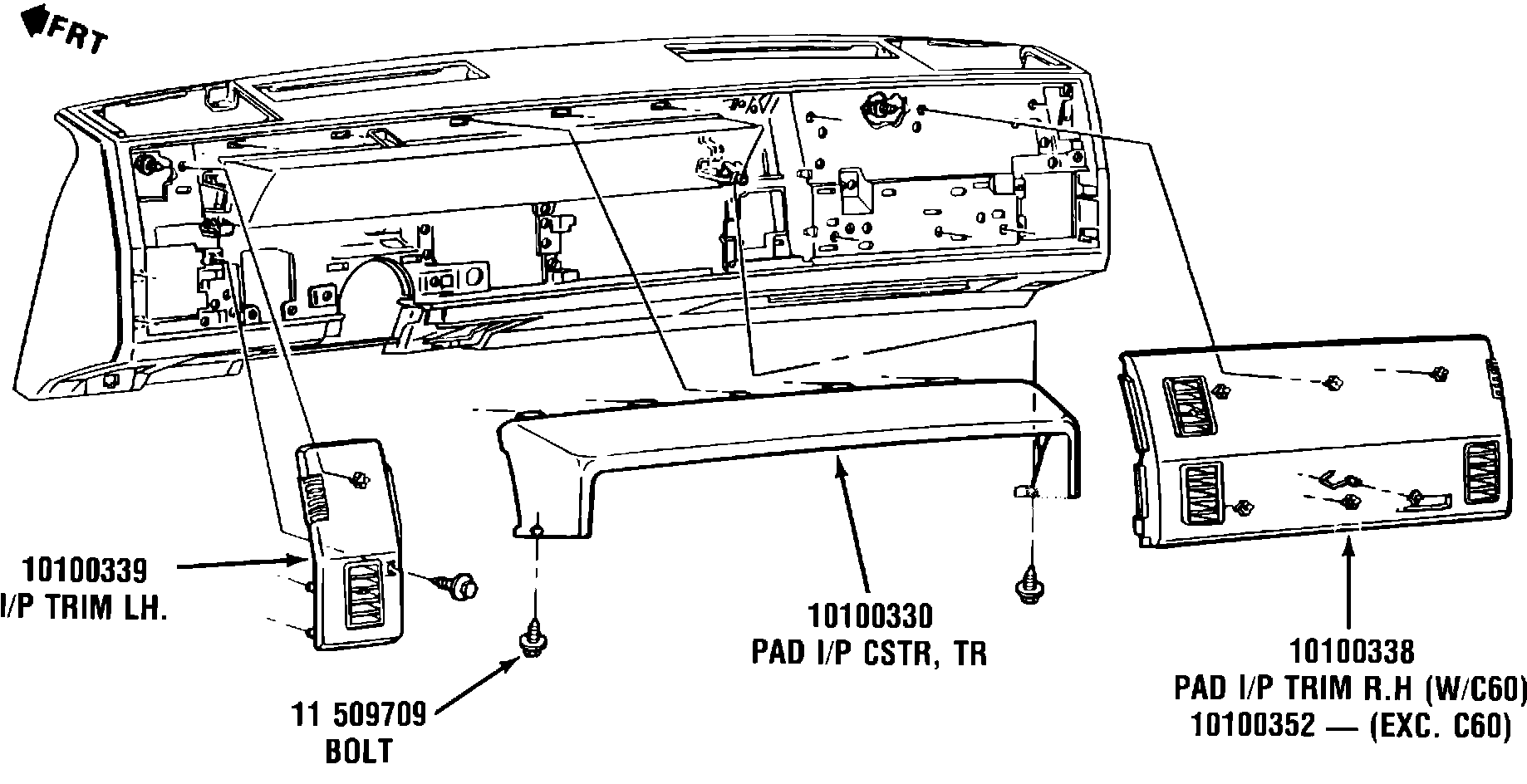

Parts required:
Grp. P/N Qty Description
11509709 9 Bolt/screw I/P attaching
10.235 10100339 1 I/P Tr. LH
9.743 10100330 1 Pad, I/P Cstr, Tr.
(Paint to match)
10.235 10100338 1 Pad, I/P Tr. RH
(W/C60) Paint to match
10.235 10100352 1 Pad I/P Tr. RH
(Exc. C60) Paint to match
NOTICE: P/N 11509709, MUST BE USED WHEN REPLACING ALL TRIM PADS. BOLT/SCREW, P/N 11503396, HAS AN OIL BASED FINISH WHICH WILL CAUSE NEW TRIM PADS TO DECOMPOSE AROUND ATTACHMENTS.
Use applicable Labor Operation and Time.
