Service Procedure

FIGURE 1:

CORSICA AND BERETTA

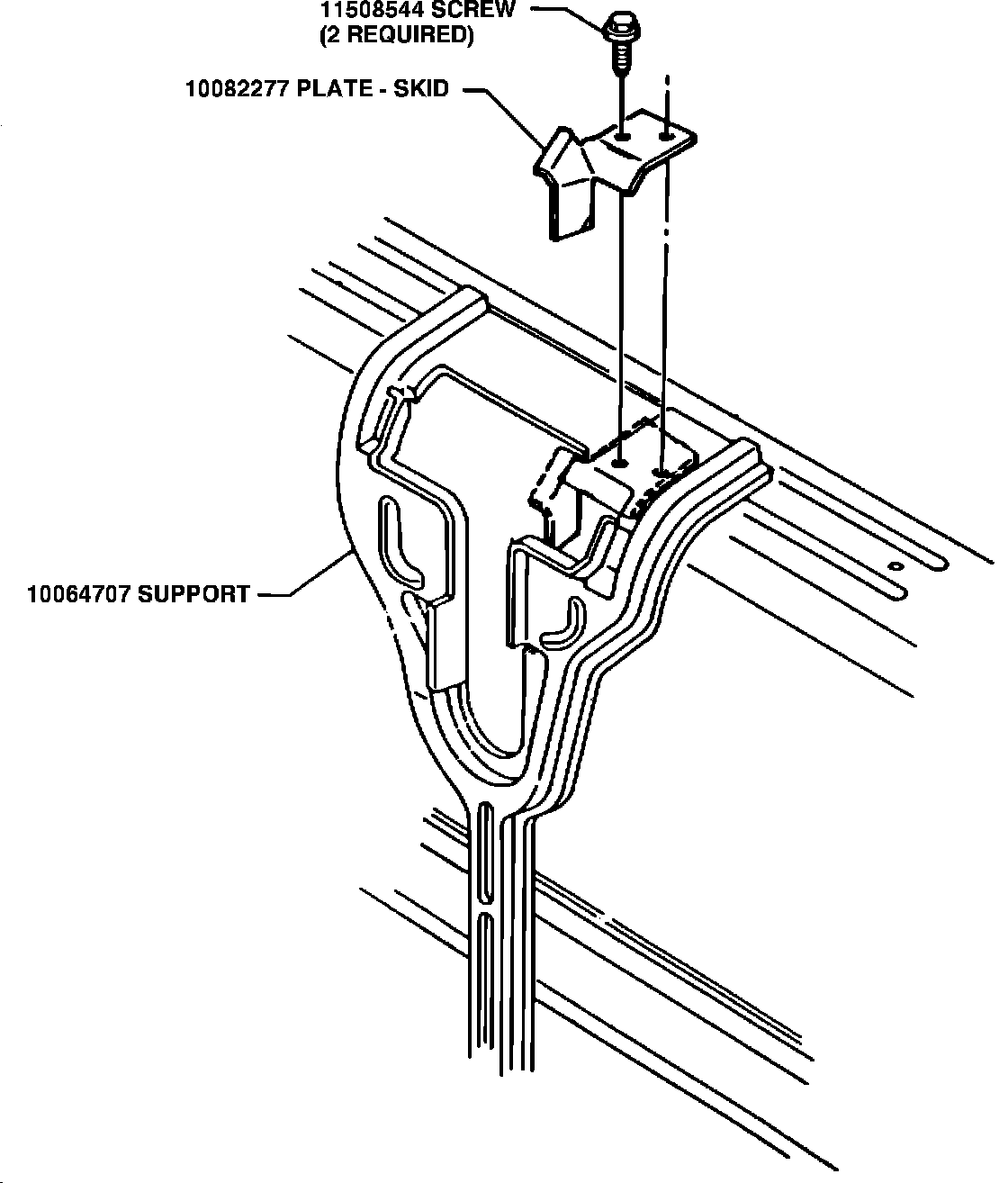

^ Place skid plate (P/N 10082277) on catch surface of support. Nest skid plate fore-aft then slide plate to drivers side of vehicle until nested. It may be necessary to slide skid plate under plastic close out panel to assure proper nesting on the catch surface of support. (See Figure 1).

^ Using skid plate holes as a guide, center punch hole locations.

^ Drill (2) 9/64" pilot holes.

^ Position plate and fasten securely using screw (P/N 11508544),
(2) required.

FIGURE 2:

BERETTA ONLY

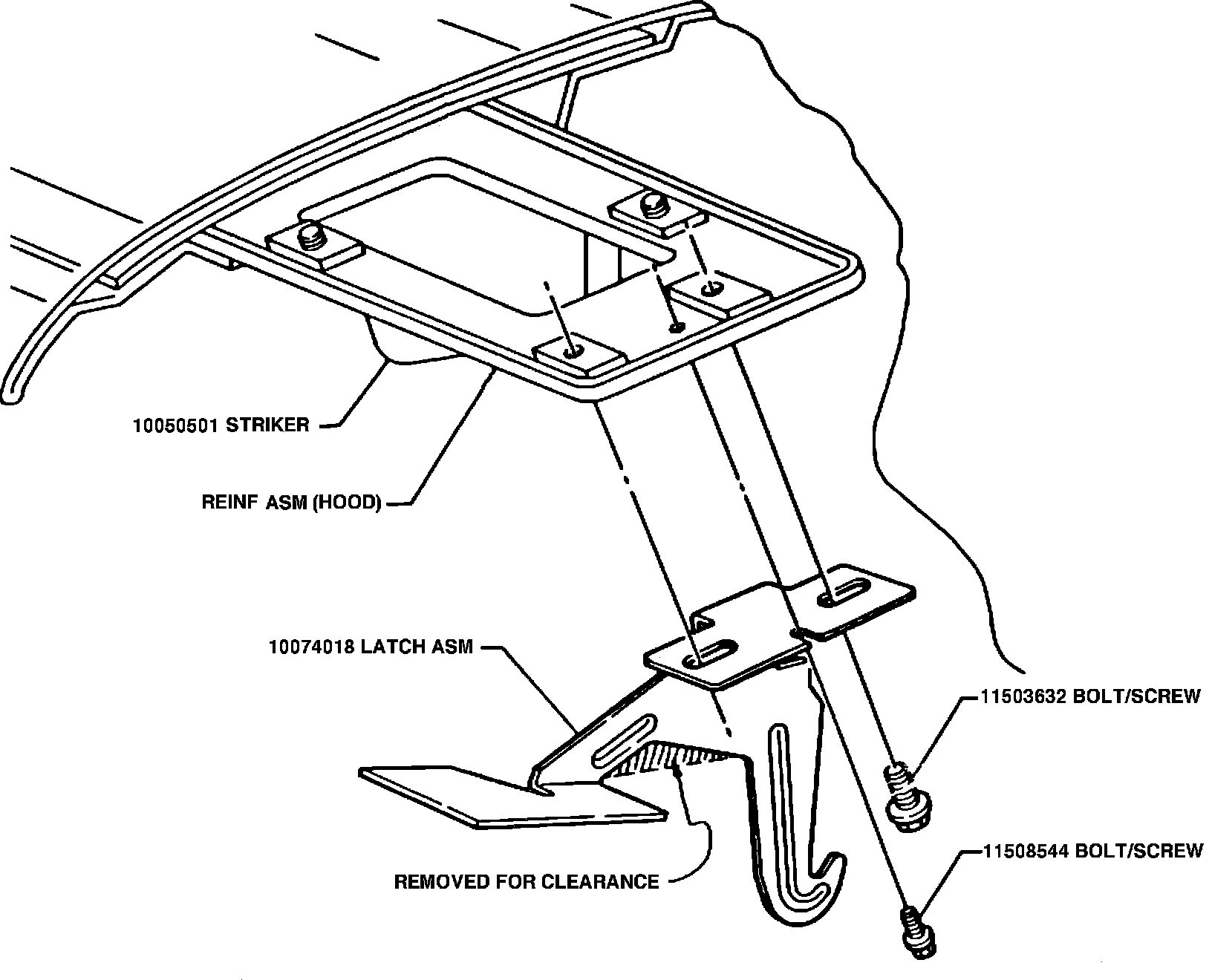

^ Remove secondary latch assembly and replace with new latch assembly (P/N 10074017). Discard production locator screw (P/N 11508544) Figure 2.


CORSICA AND BERETTA

^ Check operation - While slowly lowering hood, secondary latch must slide down newly installed skid plate until fully engaged.

^ Should secondary latch rest on catch surface without sliding down sloped surface of skid plate, loosen screw (P/N 11503632)
(2) places (See Figure 2). If not previously removed, remove and discard production locator screw (P/N 11508544) and adjust secondary latch forward slightly. Tighten screw (P/N 11503632)
(2) places. Check operation by slowly lowering hood as before.

^ If locator screw (P/N 11508544) is removed for either secondary latch replacement (Beretta) or for secondary latch adjustment (Corsica or Beretta), a new (P/N 11508544) locator screw must be installed. It may be necessary to first drill a 9/64" pilot hole if secondary latch assembly required adjustment for proper operation.

CAMPAIGN IDENTIFICATION LABEL:

CAMPAIGN IDENTIFICATION LABEL

Each vehicle corrected in accordance with the instructions outlined in this Product Campaign Bulletin will require a "Campaign Identification Label". Each label provides a space to include the five digit dealer code of the dealer performing the campaign service. This information may be inserted with a typewriter or ballpoint pen.
Each "Campaign Identification Label" is to be located on the radiator core support in an area which will be visible when the vehicle is brought in for periodic servicing by the owner.

Apply "Campaign Identification Label" only on a clean dry surface.
CLAIM INFORMATION

Submit a Product Campaign Claim with the information indicated below:


FAILED PARTS LABOR LAB * OTH
REPAIR PERFORMED PC PART NO. ALLOW FC OP HRS HRS

INSTALL SKID PLATE 4 10082277 ** 00 V3780 0.3 0.1
CORSICA MODELS

INSTALL SKID PLATE AND 5 10074018 ** 00 V3781 0.4 0.1
NEW SECONDARY LATCH BERETTA MODELS


*Campaign Administrative Allowance

**The "Parts Allowance" should be 30% of current SPO (Service Parts Operations, formally known as GMWDD) dealer net price when parts are furnished no charge by Chevrolet.

Dealers will automatically receive the correct labor and material allowance based on the labor operation performed.

Refer to the Chevrolet Claims Processing Manual for details on Product Campaign Claim submission.
