Wheel Speed Sensor: Testing and Inspection

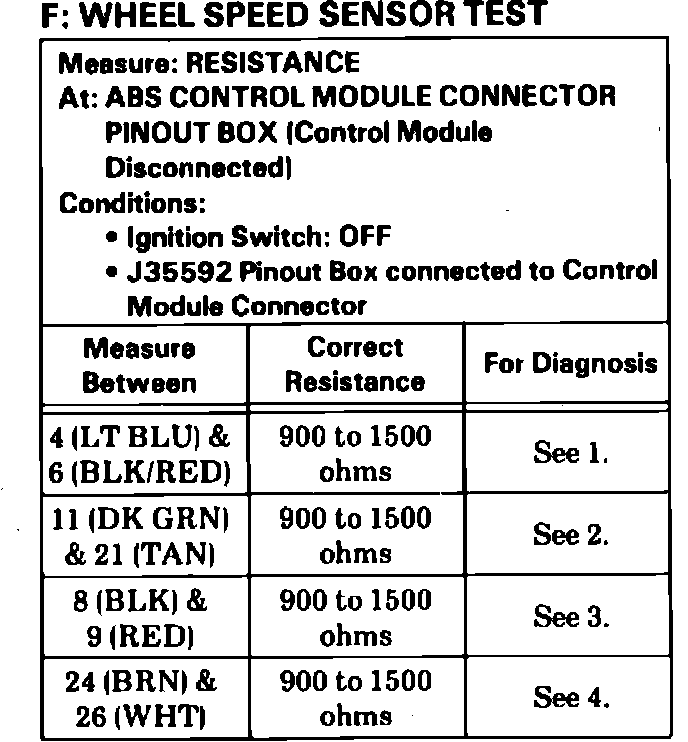

Fig. 20 Wheel speed sensor test (Part 1 of 2). 1986-87:

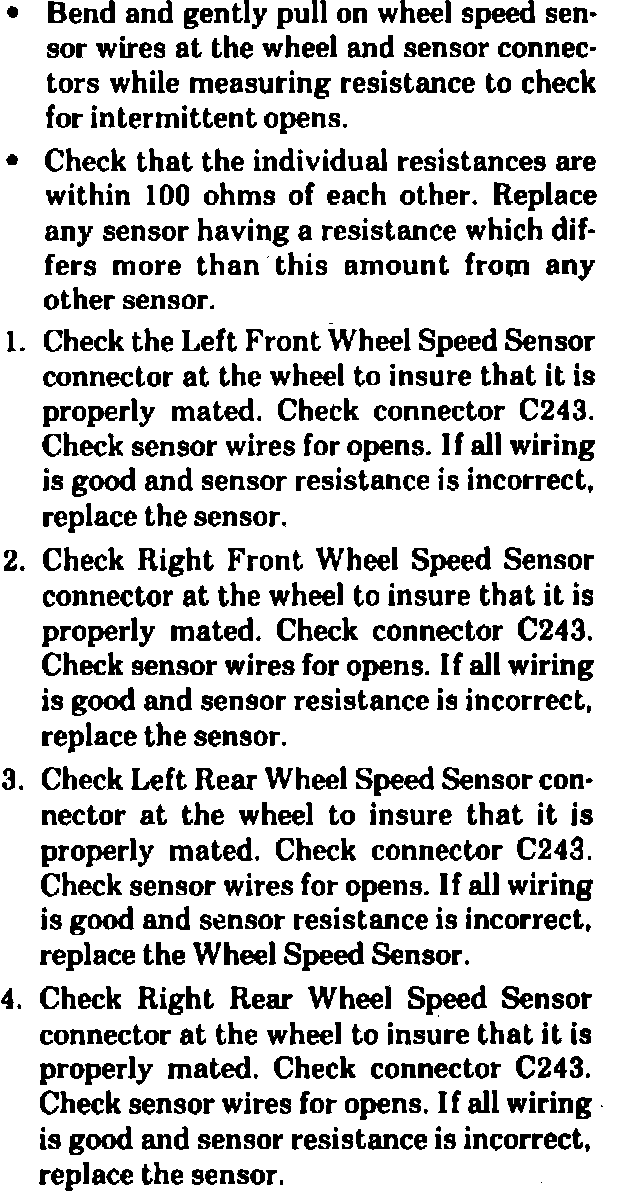

Fig. 20 Wheel speed sensor test (Part 2 of 2). 1986-87:
