Electrical Diagrams

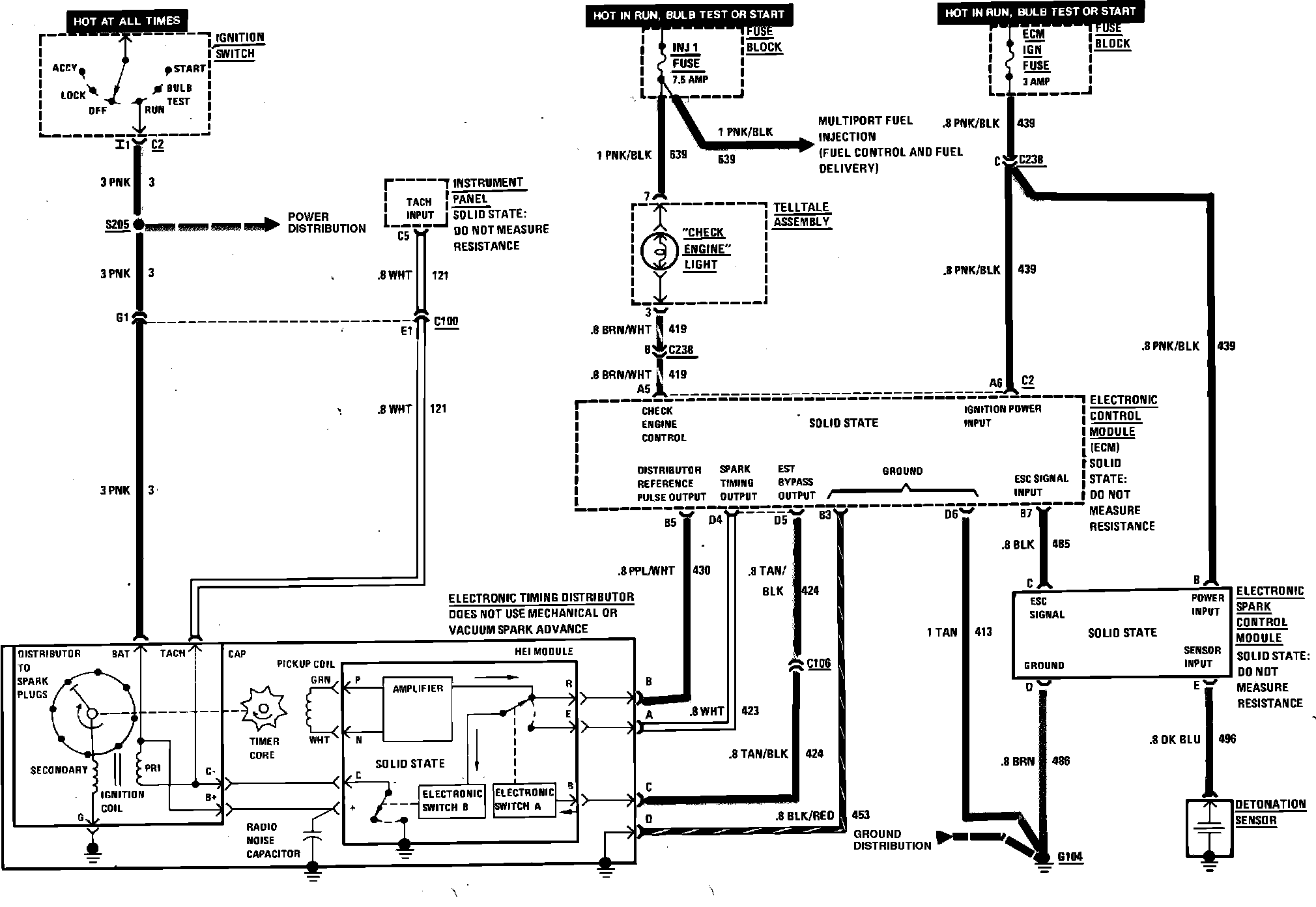

Multiport Fuel Injection Wiring Circuit (Check Engine Light, Electronic Spark Control & Ignition).:
