Cruise Control Servo: Testing and Inspection

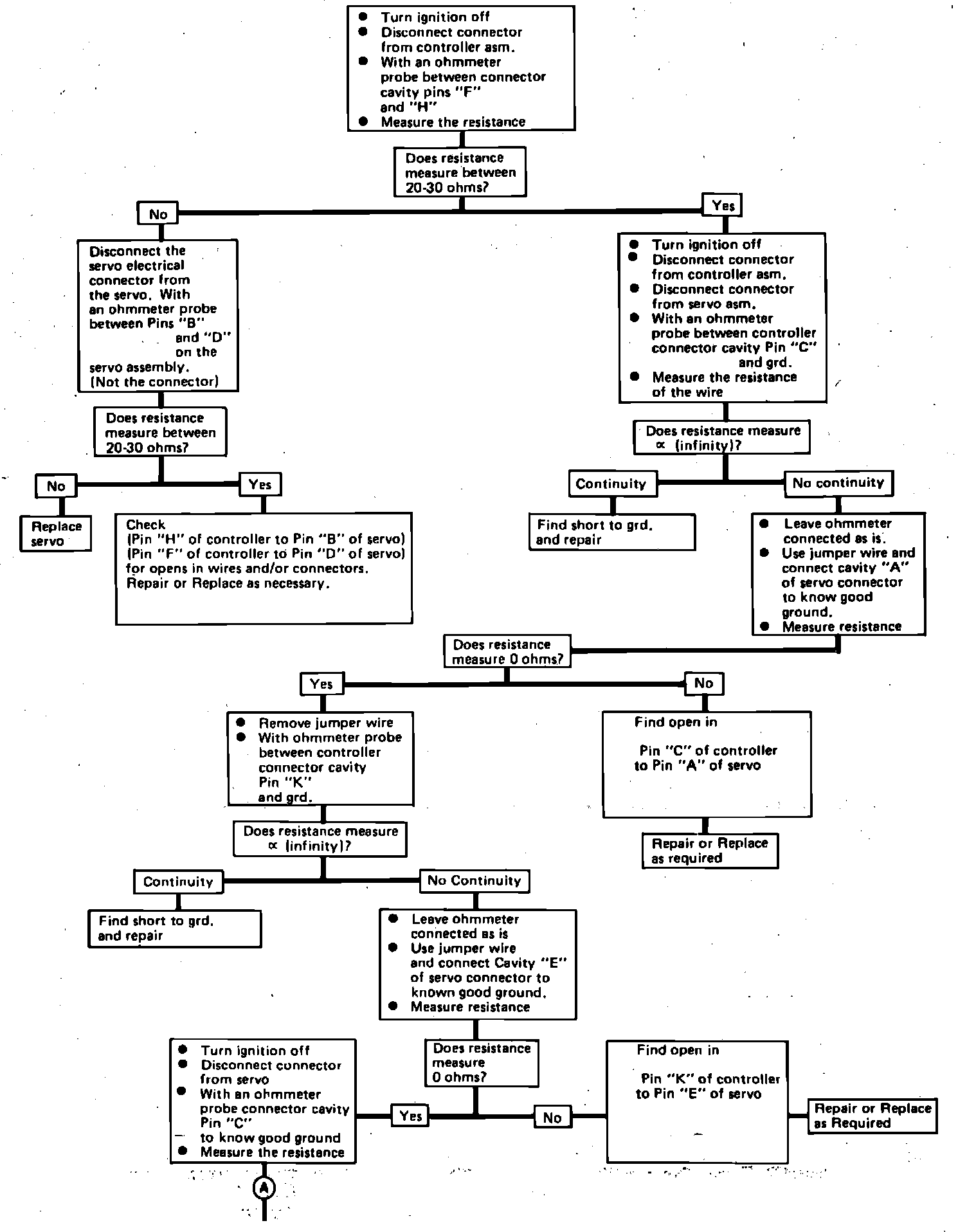

Fig. 13 Servo diagnostic chart (Part 1 of 2). Custom Cruise III:

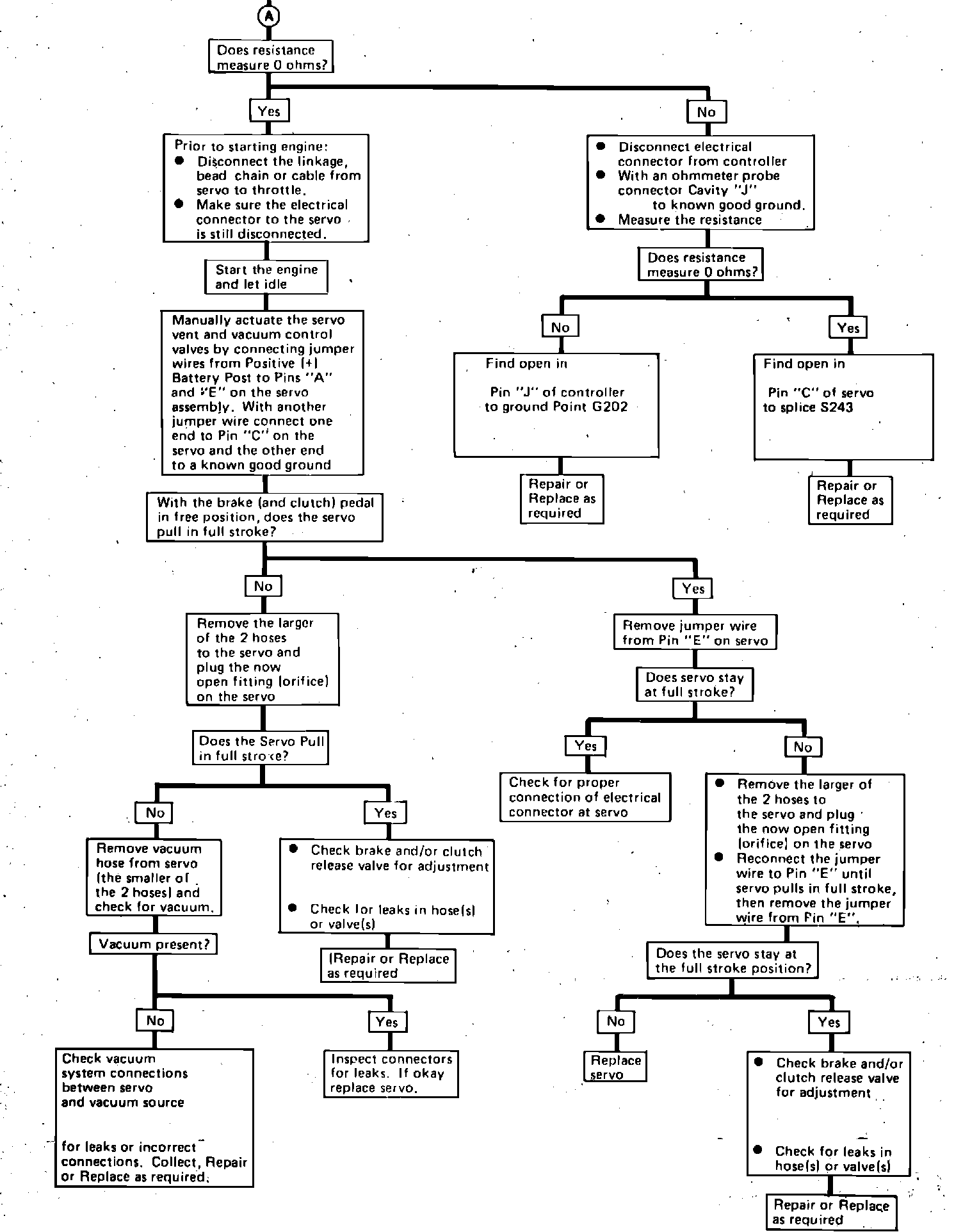

Fig. 13 Servo diagnostic chart (Part 2 of 2). Custom Cruise III:

Refer to Fig. 13 to check servo and related wiring.
