Compressor Clutch Relay
>>
Locations
>>
Cut-Off Relay
Cut-Off Relay

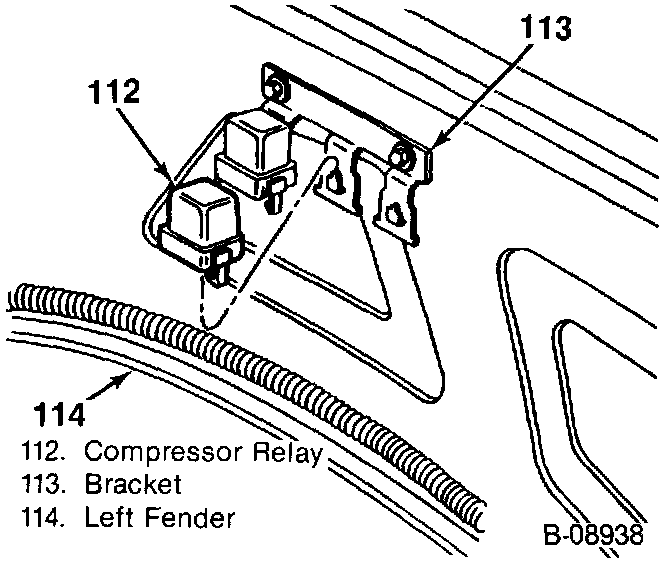

A/C Compressor Relay:
The Compressor Cut-Off Relay is located on the LH fender on the relay bracket.
