Engine Control - Revised Code 43 Diagnostic Chart

9218chevy01

Number: 88-436-6E

Section: 6E

Date: February 1990

Corporate Bulletin No.: 016504


Subject:
DRIVEABILITY AND EMISSIONS REVISED CODE 43 CHART


Model and Year:
1987-88 R CAR WITH 1.5L (VIN CODE 9) ENGINE


TO:
ALL CHEVROLET DEALERS

The Code 43 diagnostic chart "Electronic Spark Control (ESC) (Knock Control Failure)" is revised to correct the resistance check of the knock sensor.








This chart will replace the present Code 43 Chart (Electronic Spark Control (ESC) Knock Control Failure) in Section 6E "Driveability And Emissions" in all 1987-1988 "R" Service Manuals with 1.5L (VIN 9) turbo engine applications.

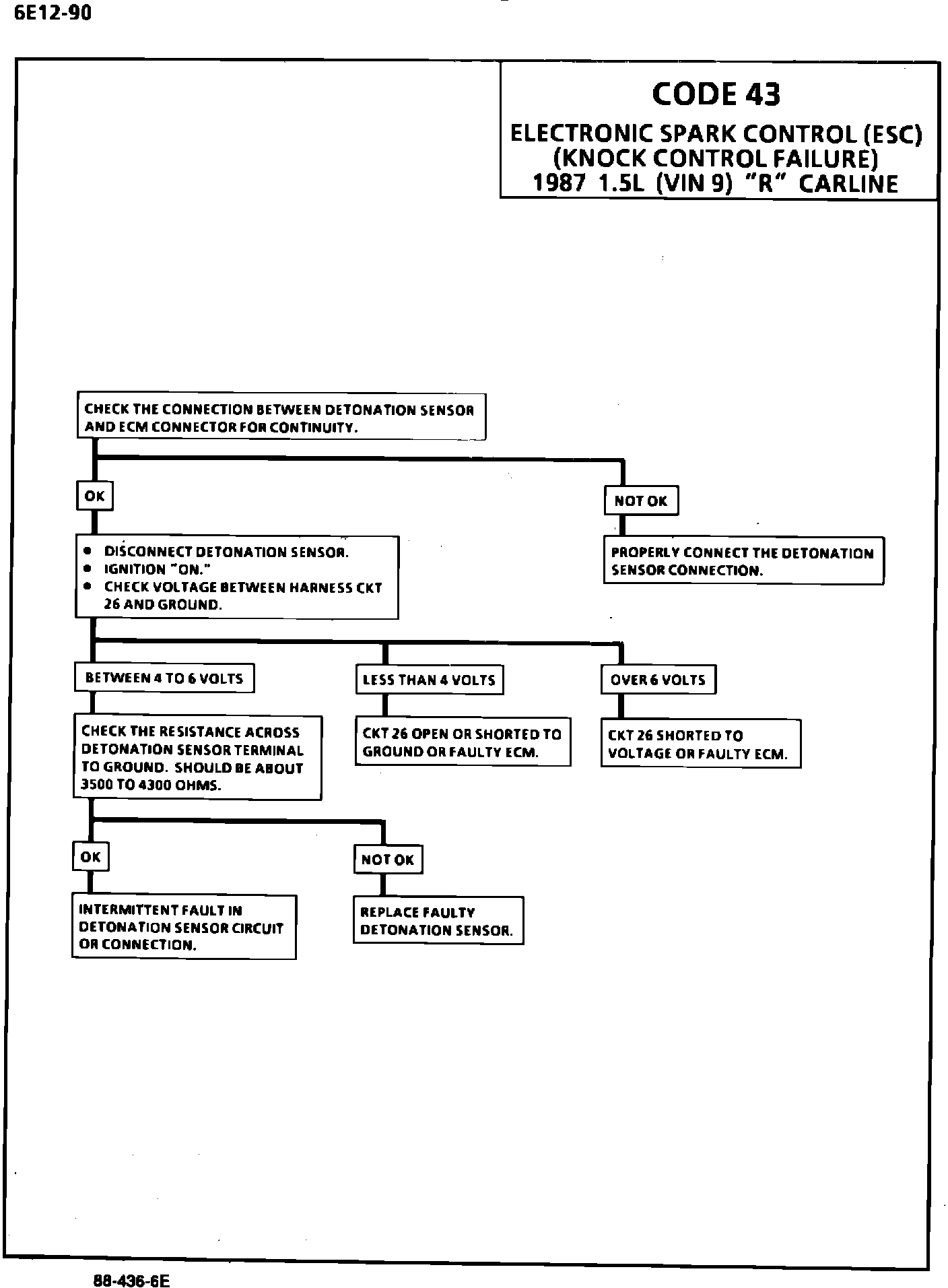

Page 6E12-9O in 1987 manual

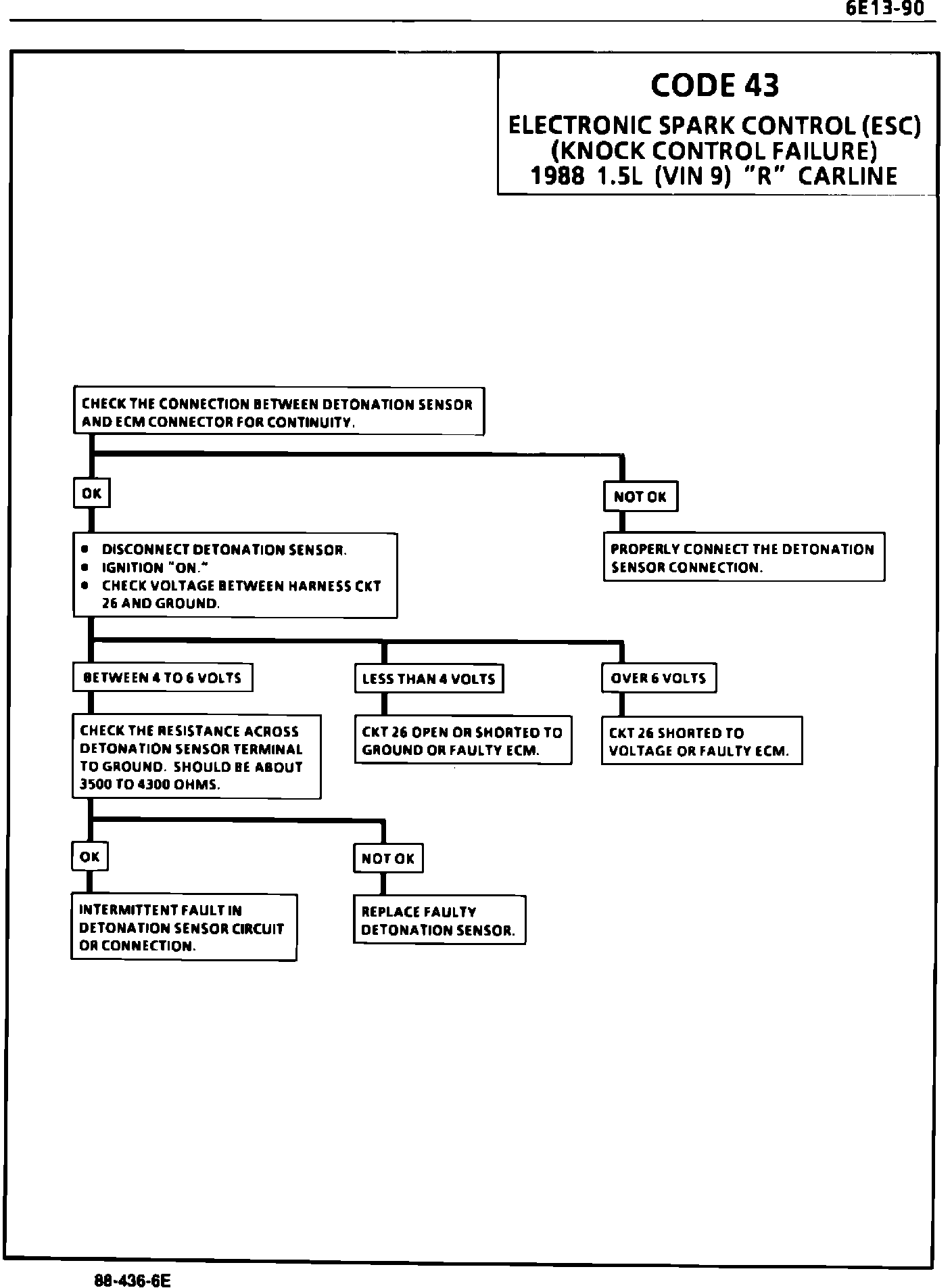

Page 6E13-9O in 1988 manual
