Compressor Clutch: Locations

LH Front Door.:

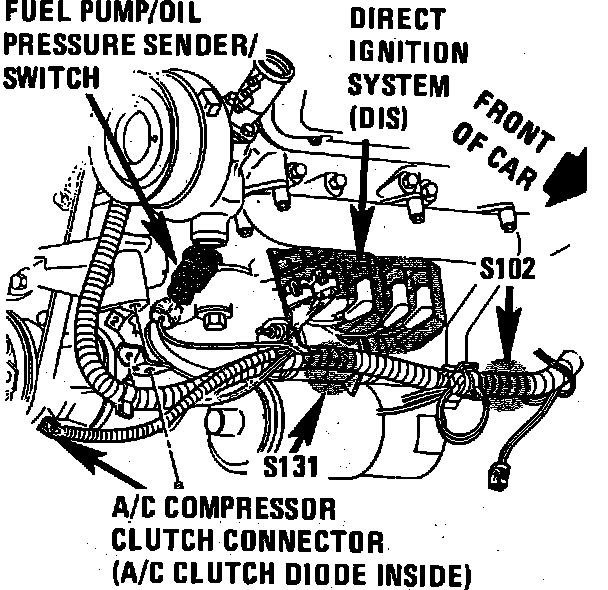

Lower RH Front Of Engine On A/C Compressor

Applicable to: V6-173/2.8L Engine
