Fuel System - Diagnostic Chart for Code 54 Revised

88chevy05

Number: 88-147-6E

Section: 6E
Date: FEB., 1988
Subject: SERVICE MANUAL REVISION

CODE 54 - FUEL PUMP CIRCUIT


Model and Year:
1988 CAMARO, CELEBRITY, CORSICA, BERETTA WITH 2.8L (VIN S OR W) 5.0L (VIN E OR F) 5.7L (VIN 8) ENGINE

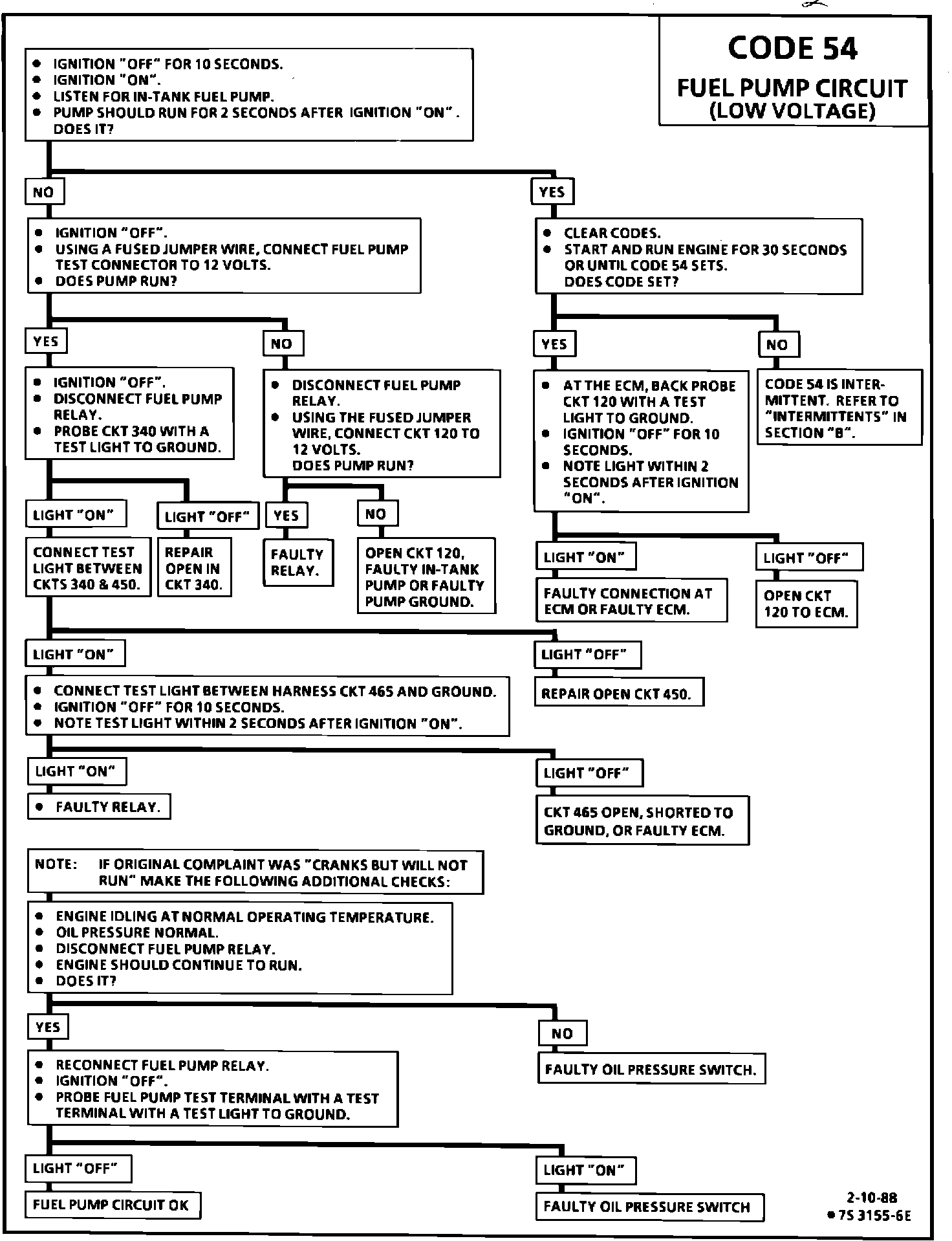

CODE 54FUEL PUMP CIRCUIT (LOW VOLTAGE):

TO: ALL CHEVROLET DEALERS


The revised Code 54 diagnostic chart is presented to accurately diagnose the Fuel Pump Circuit. This chart replaces the code 54 charts found in the 1988 final service manual for the previously mentioned engine applications.
