Home >> Chevrolet >> 1988 >> Camaro V6-173 2.8L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Powertrain Controls >> Mass Air Flow Control

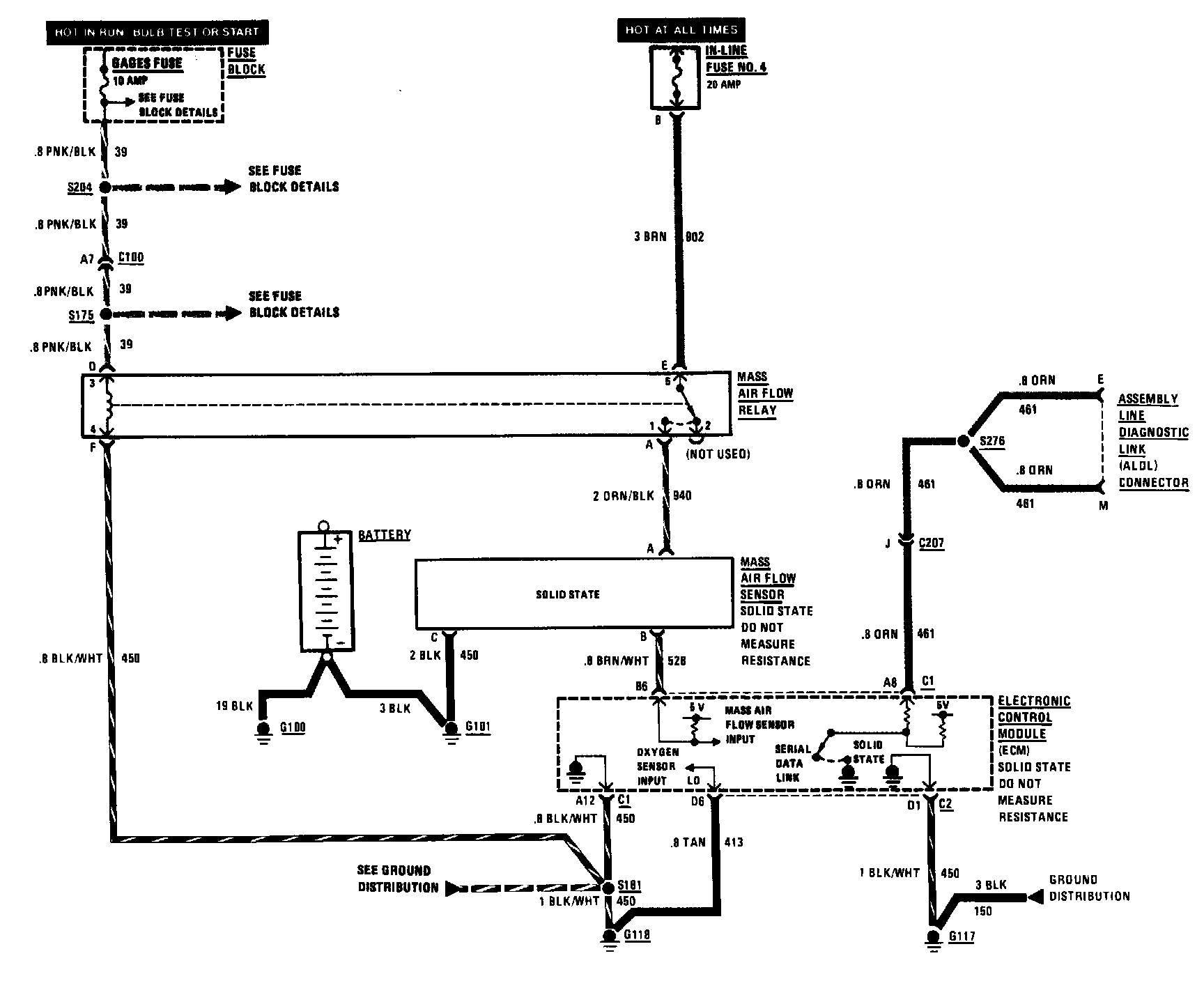

Mass Air Flow Control

Mass Air Flow Control:
