Installation

For additional information see Notes, Warnings, and Hints. Fundamentals and Basics

Wheel Cylinder:

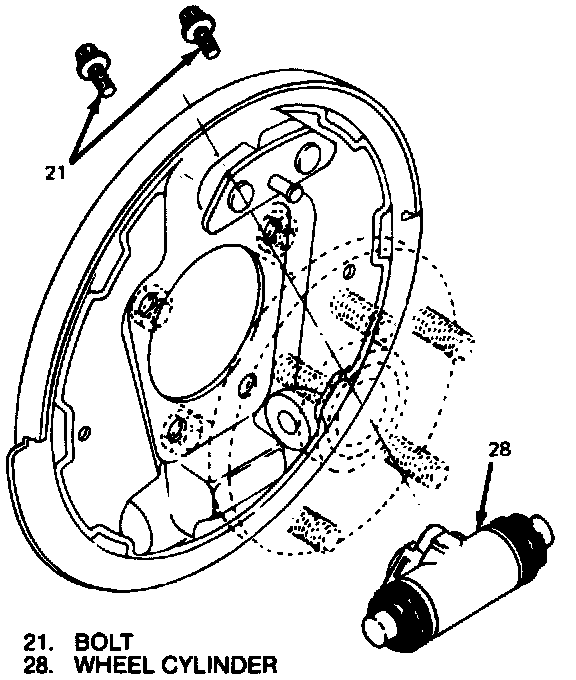

1. Position wheel cylinder assembly (28) and hold in place with wooden block between cylinder and axle flange.
2. Install wheel cylinder bolts (21) using a #6 Torx socket.
^ Torque wheel cylinder bolts to 20 Nm (15 lbs. ft.).
3. Install inlet tube line and nut.
^ Torque inlet tube nut to 17 Nm (12 lbs. ft.).
4. Bleed the brake system.
