Home >> Chevrolet >> 1988 >> Cavalier/Z24 V6-173 2.8L >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Part 1 of 2

Part 1 of 2

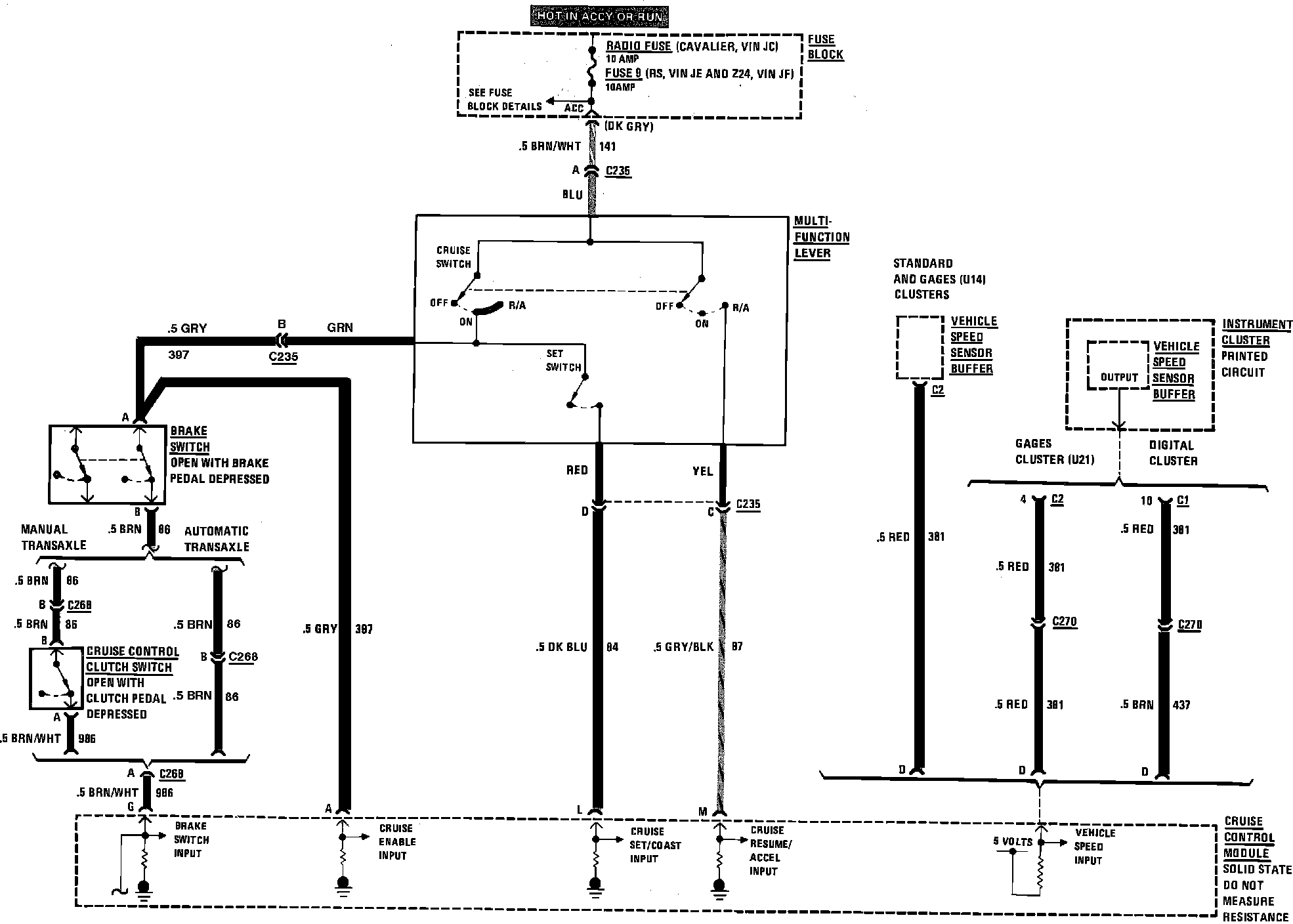

Cruise Control Vacuum & Wiring Circuit (Part 1 Of 2):
