Chevrolet
>>
1988
>>
Cavalier/Z24 V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Direct Ignition System
Direct Ignition System

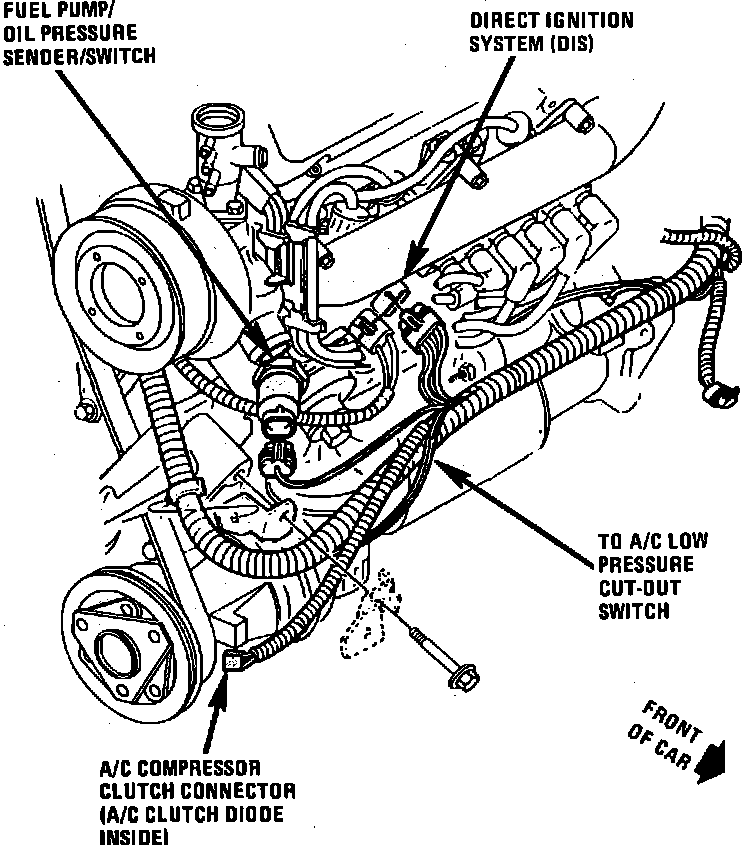

Front Of Engine.:
Front Of Engine
Applicable to: Cavalier & Cimarron w/V6-173/2.8L Engine
