Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1988
>>
Cavalier/Z24 V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Hazard Warning Lamps
>>

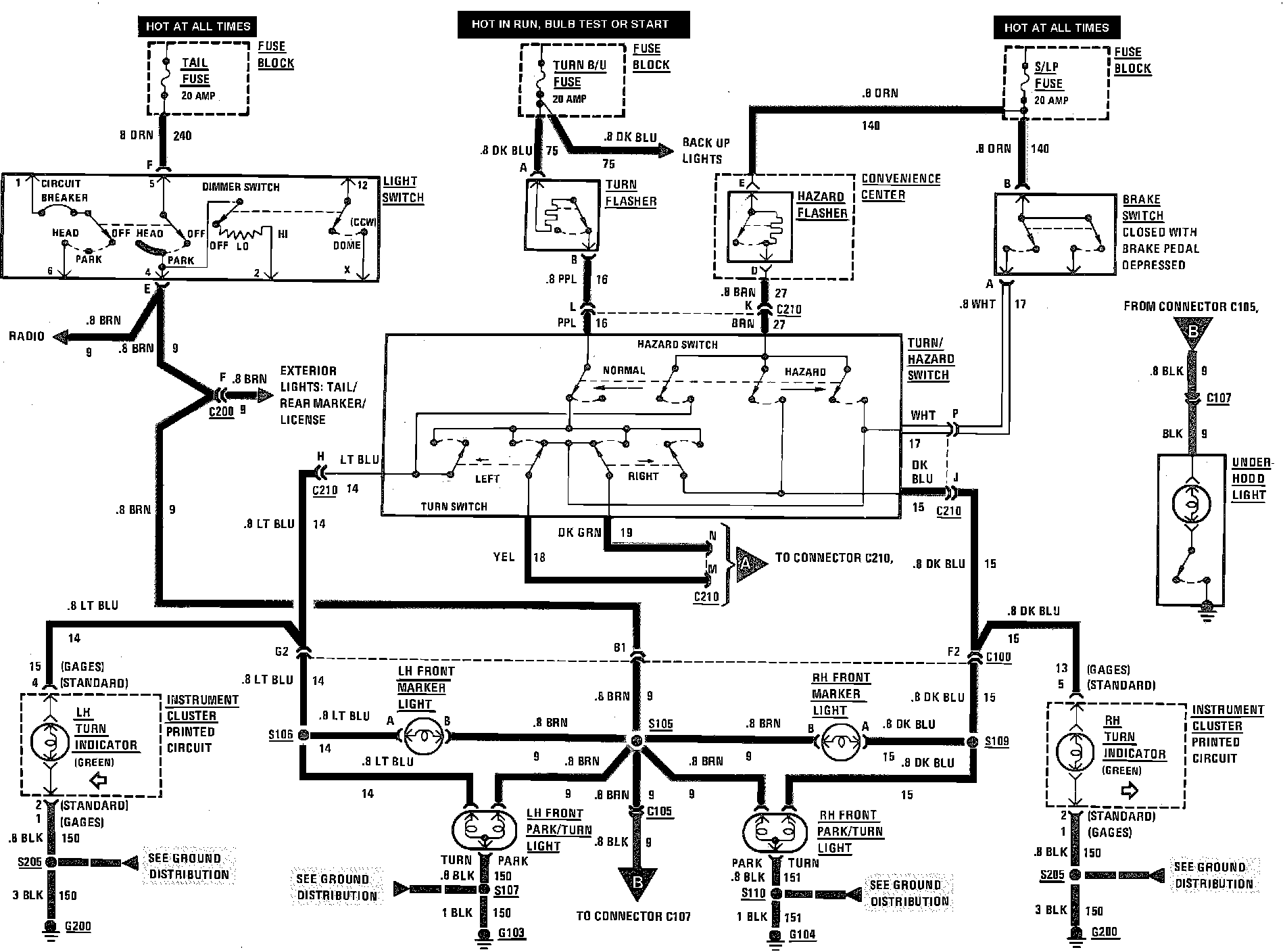

Turn, Hazard, Front Park & Front Marker - Exc. RS & Z24
Turn, Hazard, Front Park & Front Marker - Exc. RS & Z24
Turn, Hazard, Front Park & Front Marker - Exc. RS & Z24:
