Fuse Block Diagrams

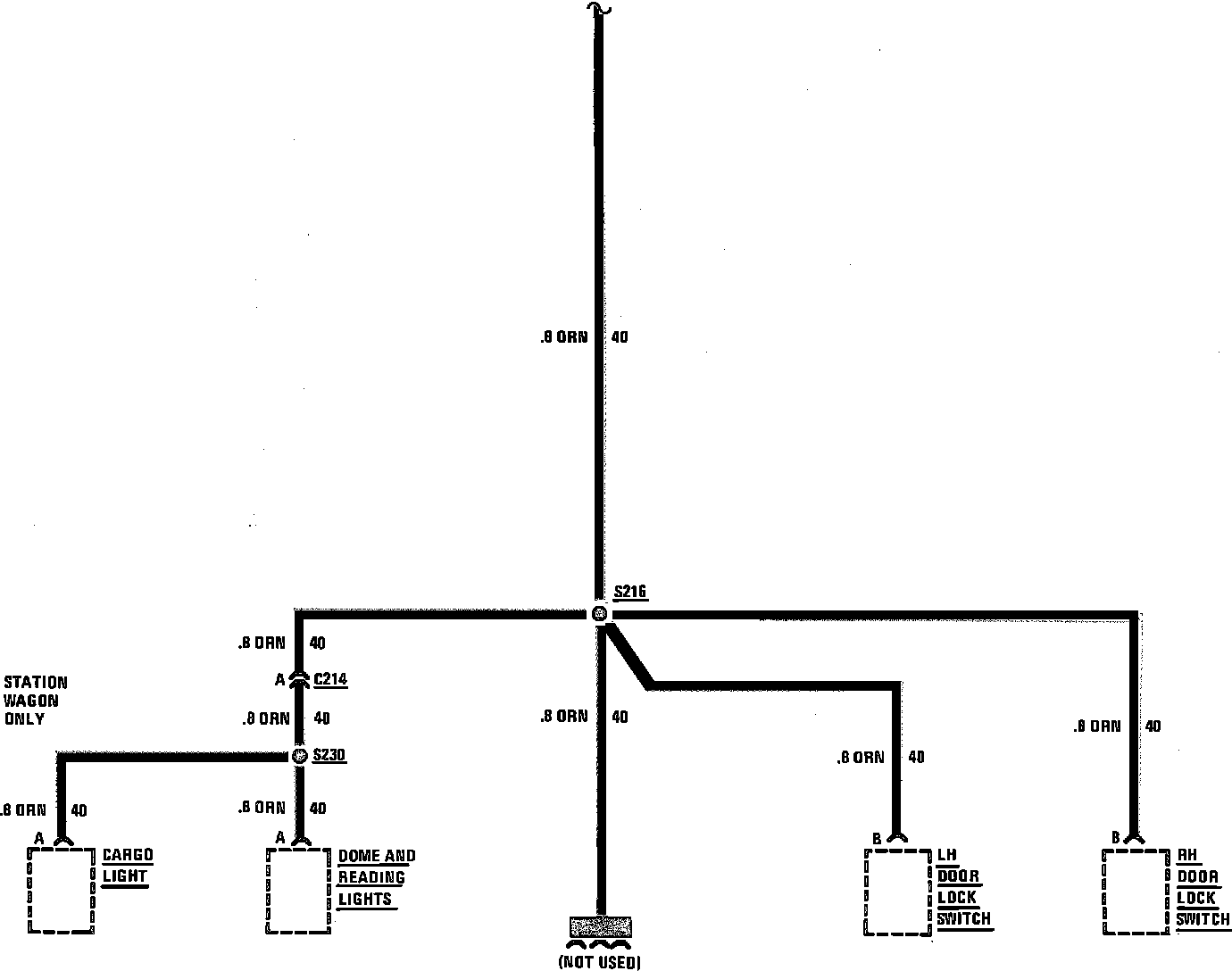

Courtesy, Cigarette Fuse, Fuel Pump ECM Fuse, S/LP Fuse & Tail Fuse:
Courtesy, Cigarette Fuse, Fuel Pump ECM Fuse, S/LP Fuse & Tail Fuse:
