Throttle Position Sensor
Throttle Position Sensor

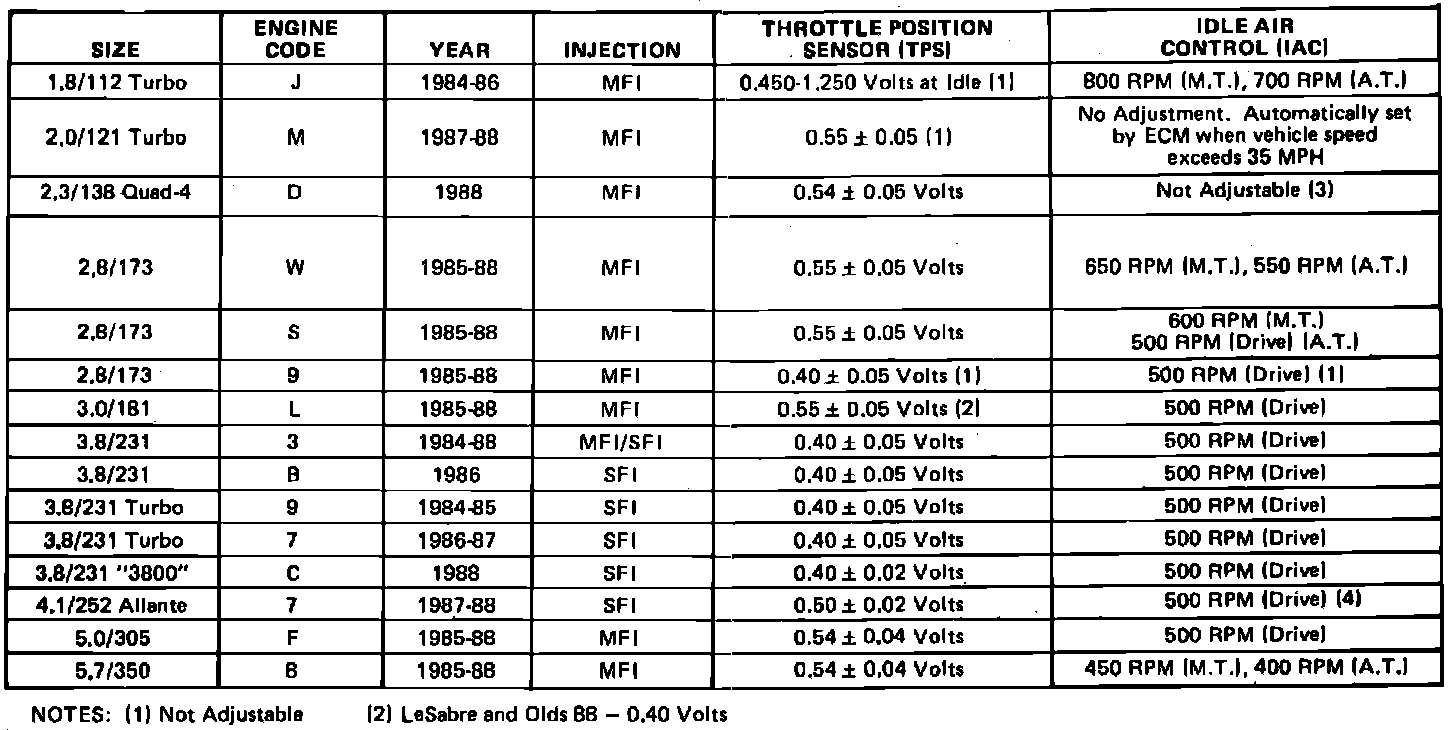

Throttle Position Sensor and IAC Specifications:

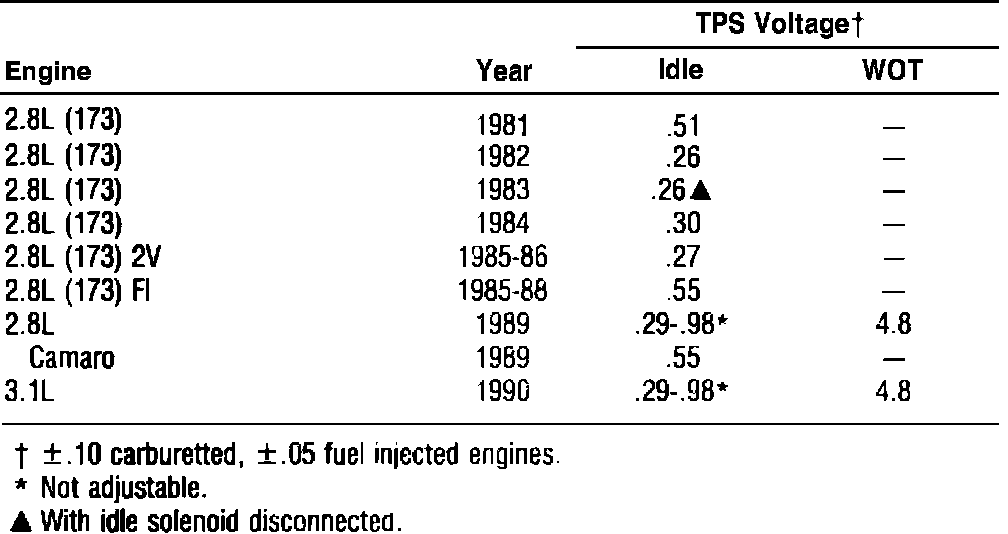

TPS Sensor Specifications:
