Front Window

Wiper Arm

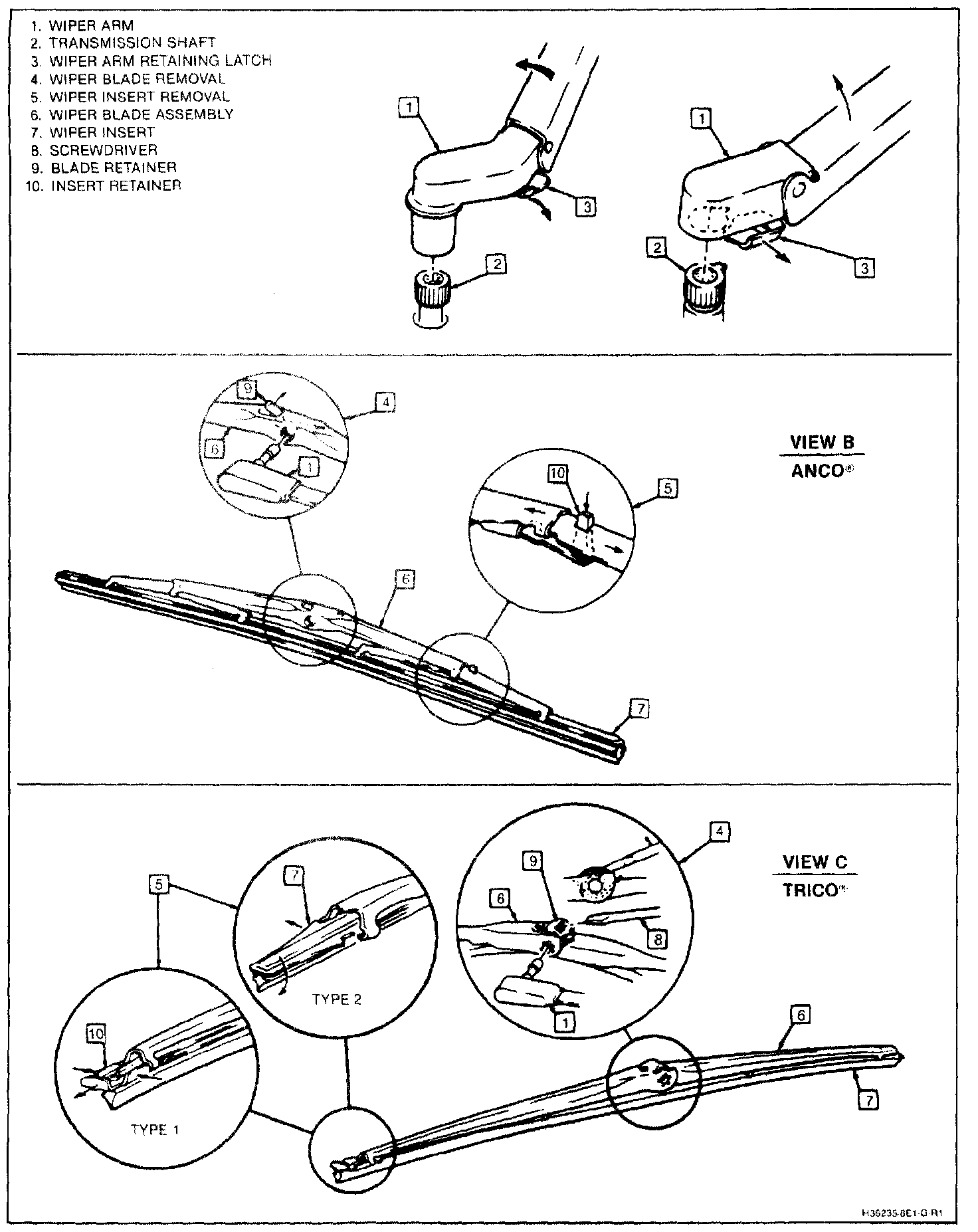

Fig 12: Wiper Arm, Blade, And Insert:

Remove or Disconnect

1. With wipers "On", turn ignition "Off" when wiper arm is at the mid-wipe position.
2. Lift wiper arm from windshield and pull retaining latch.
3. Arm from transmission shaft.

Install or Connect

1. Arm on transmission shaft.
2. Push retaining latch in and return arm to windshield.
3. Park wipers.
