Park Switch Replacement

Park Switch Replacement

Remove or Disconnect

1. Wiper cover. Refer to Wiper Cover Replacement.

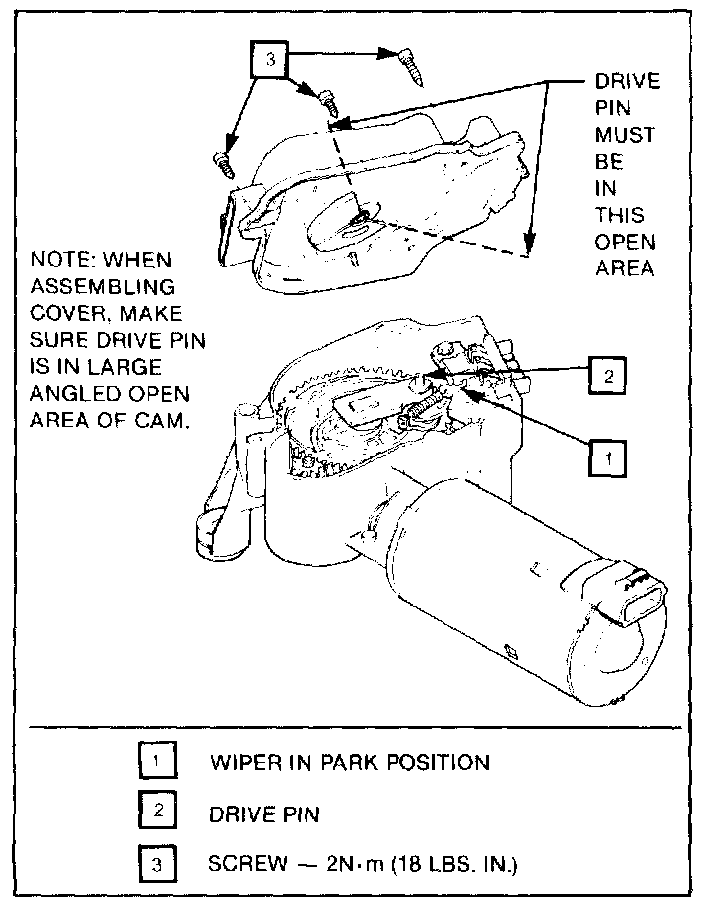

Fig 10: Pulse Wiper (Cover Removed):

Important: If motor is in park position (Fig 10), operate motor as required to remove pawl from relay slot.

2. Park switch assembly.

Install or Connect

1. New park switch assembly (standard switch has no extra terminals. Pulse switch requires them).
2. Follow "Wiper Cover Replacement" procedure carefully Wiper Cover Replacement.
