Timing Component Alignment Marks: Locations

Fig. 17 Camshaft timing pulley alignment. 16 valve engine:

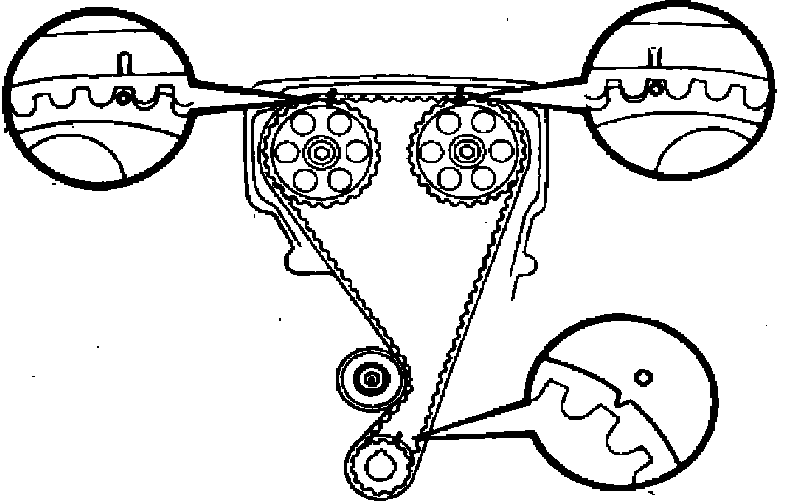

Fig. 18 Belt & pulley alignment. 16 valve engine:

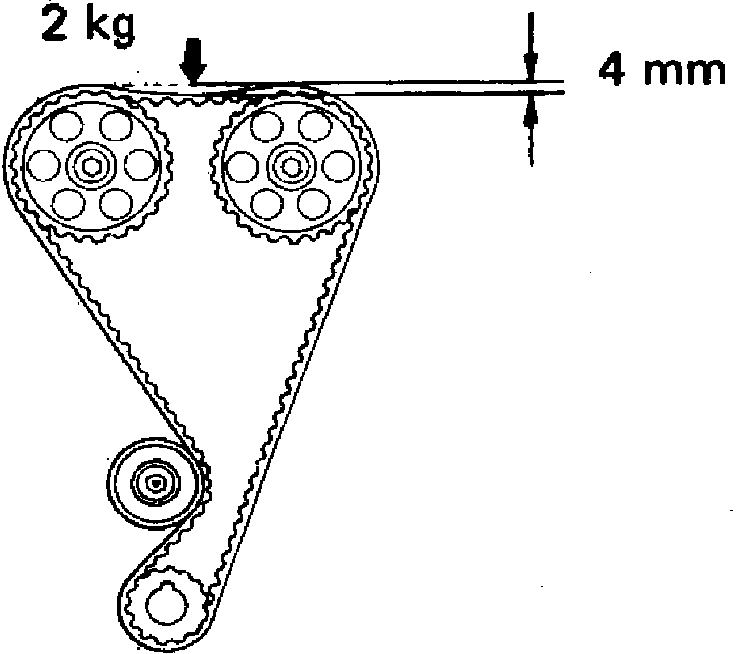

Fig. 19 Measuring belt deflection. 16 valve engine:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information, Service and Repair
