Home >> Chevrolet >> 1988 >> Sprint L3-61 1.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Compressor Controls >> Late Production Models >> Part 1 of 2

Part 1 of 2

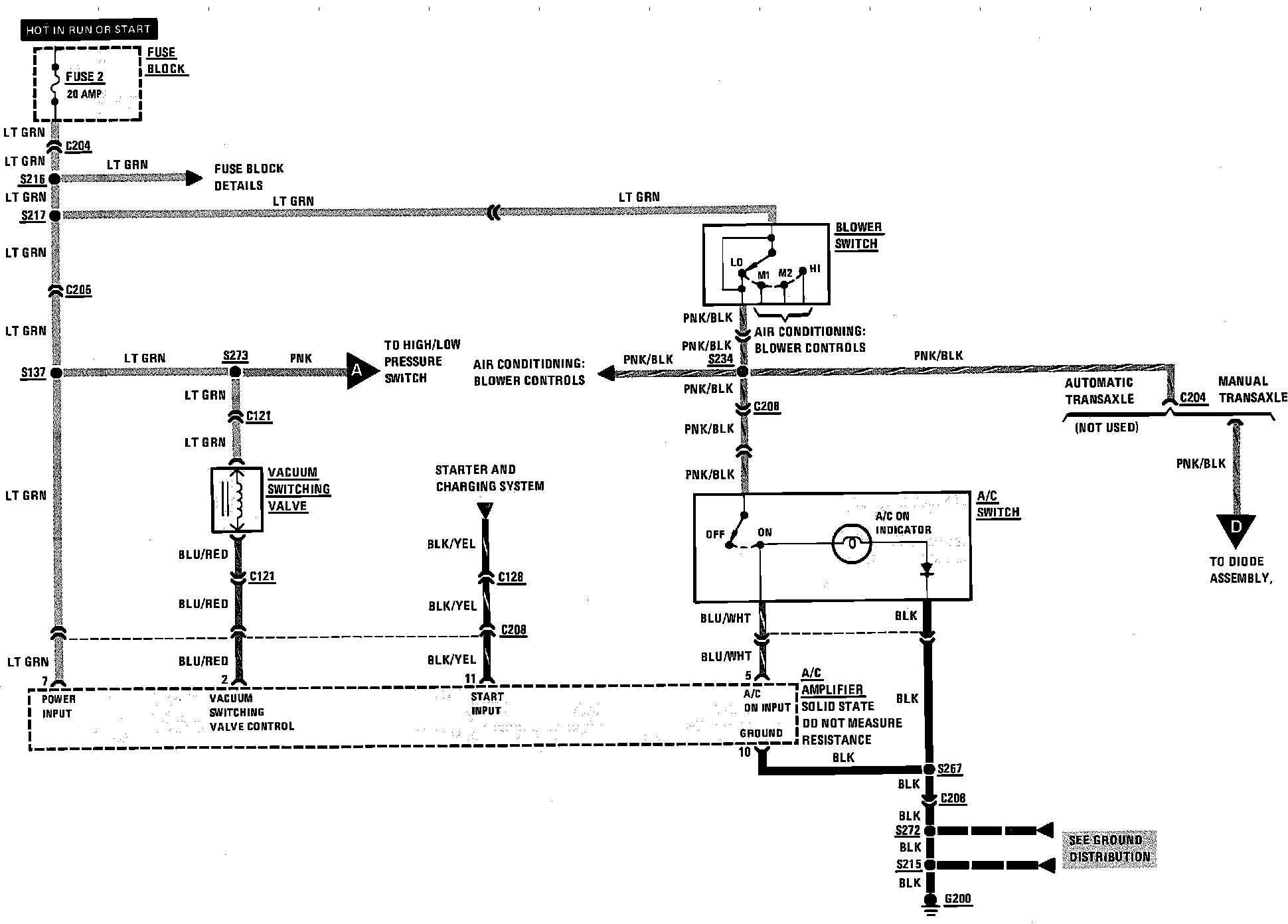

Fig. 4a Air Conditioning & Heater Compressor Controls Wiring Circuit (Part 1 of 2). Late Production Models:
