Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

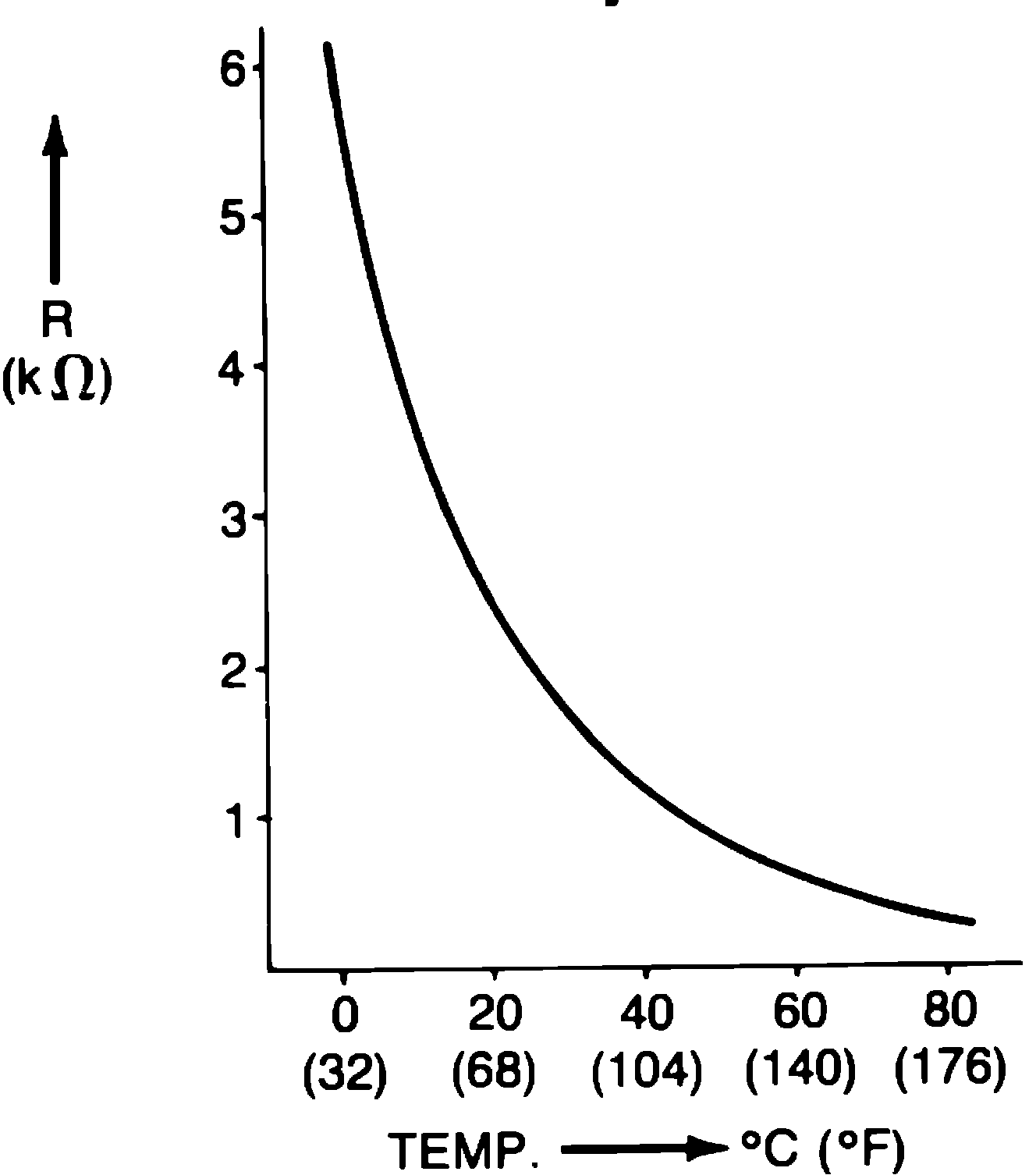

Fig. 13 Checking coolant temperature sensor:

Warm temperature sensor, then check temperature-to-resistance relationship as shown, Fig. 13.
