Automatic Transmission/Transaxle Controls

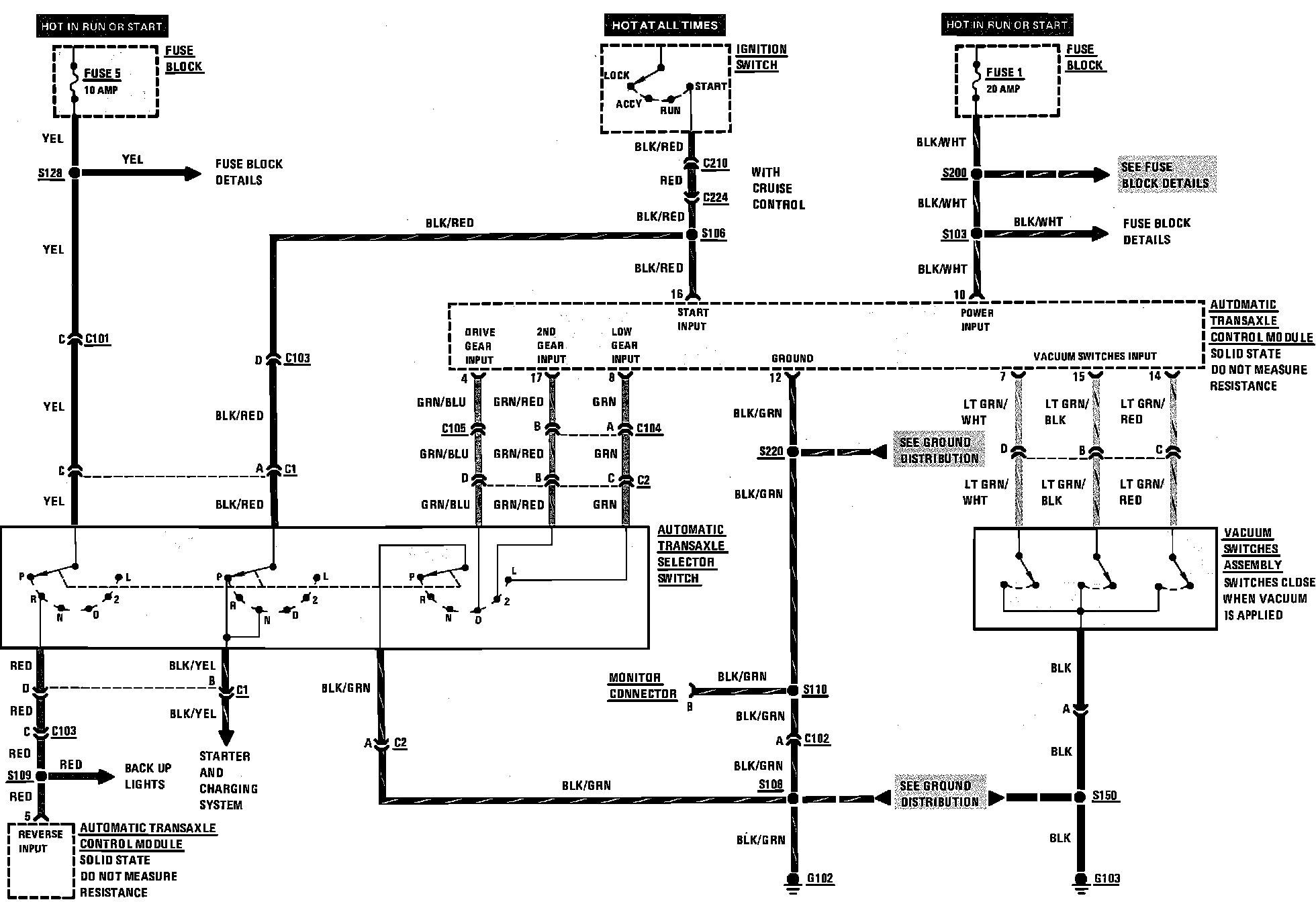

Fig. 6a Automatic Transaxle Control Wiring Circuit (Part 1 of 3):

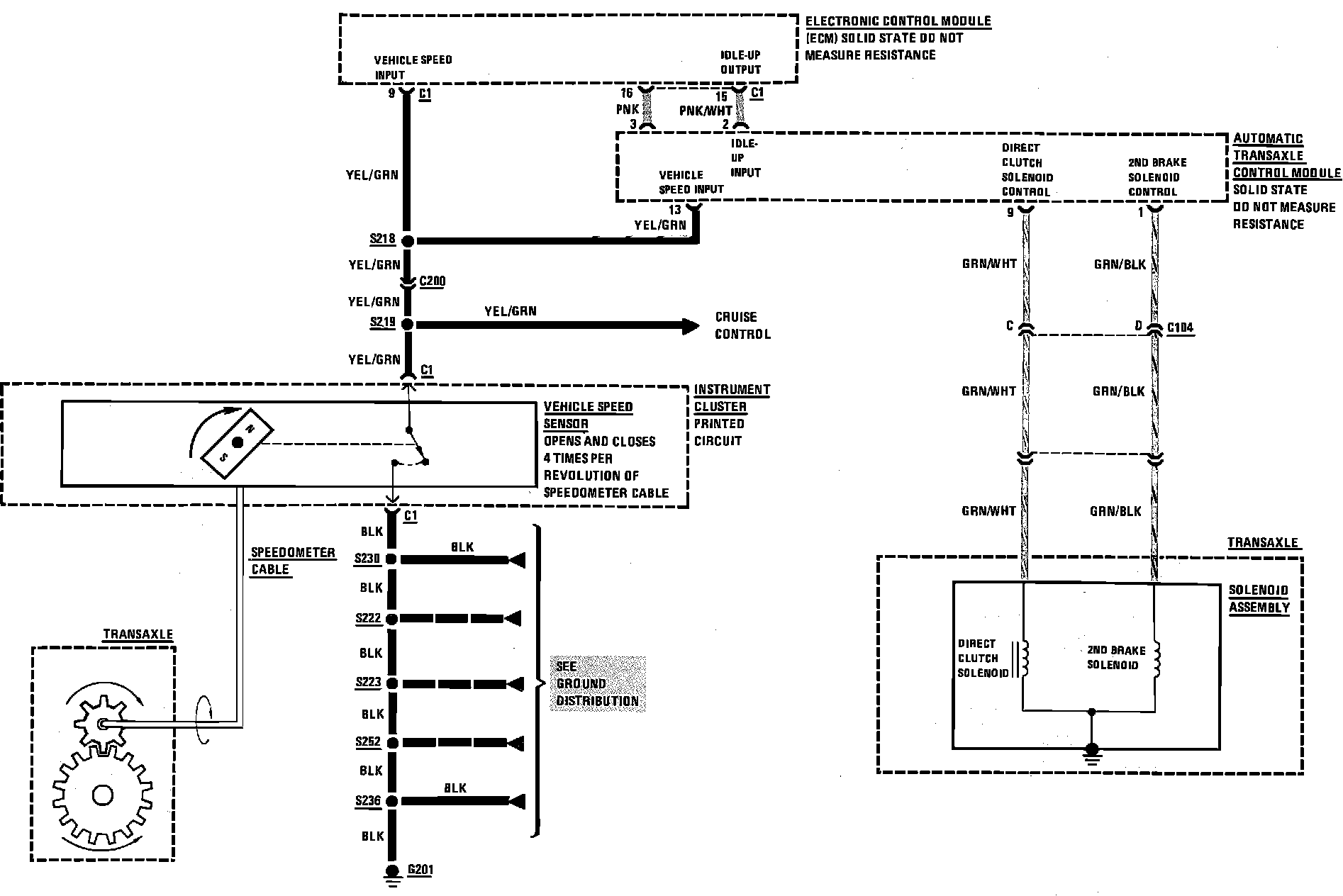

Fig. 6b Automatic Transaxle Control Wiring Circuit (Part 2 of 3):

Fig. 6c Automatic Transaxle Control Wiring Circuit (Part 3 of 3):
