Fuel Pump Relay - Revised Circuit Chart A-5

Number: 90-444-6E

Section: 6E

Date: AUGUST 1993

Corporate Bulletin No.: 316305

ASE No.: A1, A8

Subject:

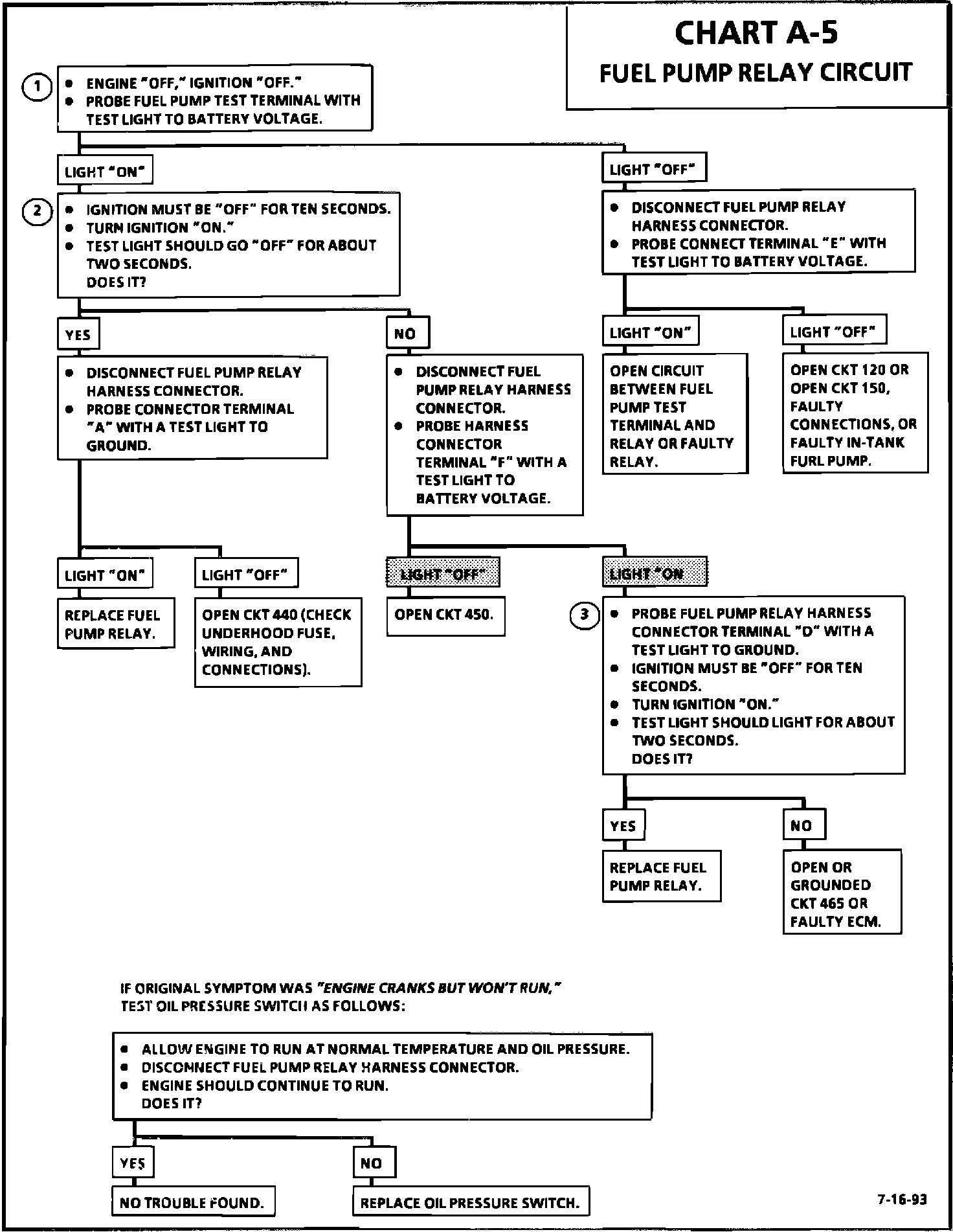

FUEL PUMP RELAY CIRCUIT CHART A-5 REVISED CHART A-5

Model and Year:
1989-90 CELEBRITY WITH 2.5L ENGINE (VIN R - RPO LR8)

SERVICE UPDATE

This bulletin updates Section 6E2 for the 1989-90 Chevrolet Celebrity Service Manual. The updated A-5 Chart represents a change in diagnosing the fuel pump relay circuit.
