Rear Window

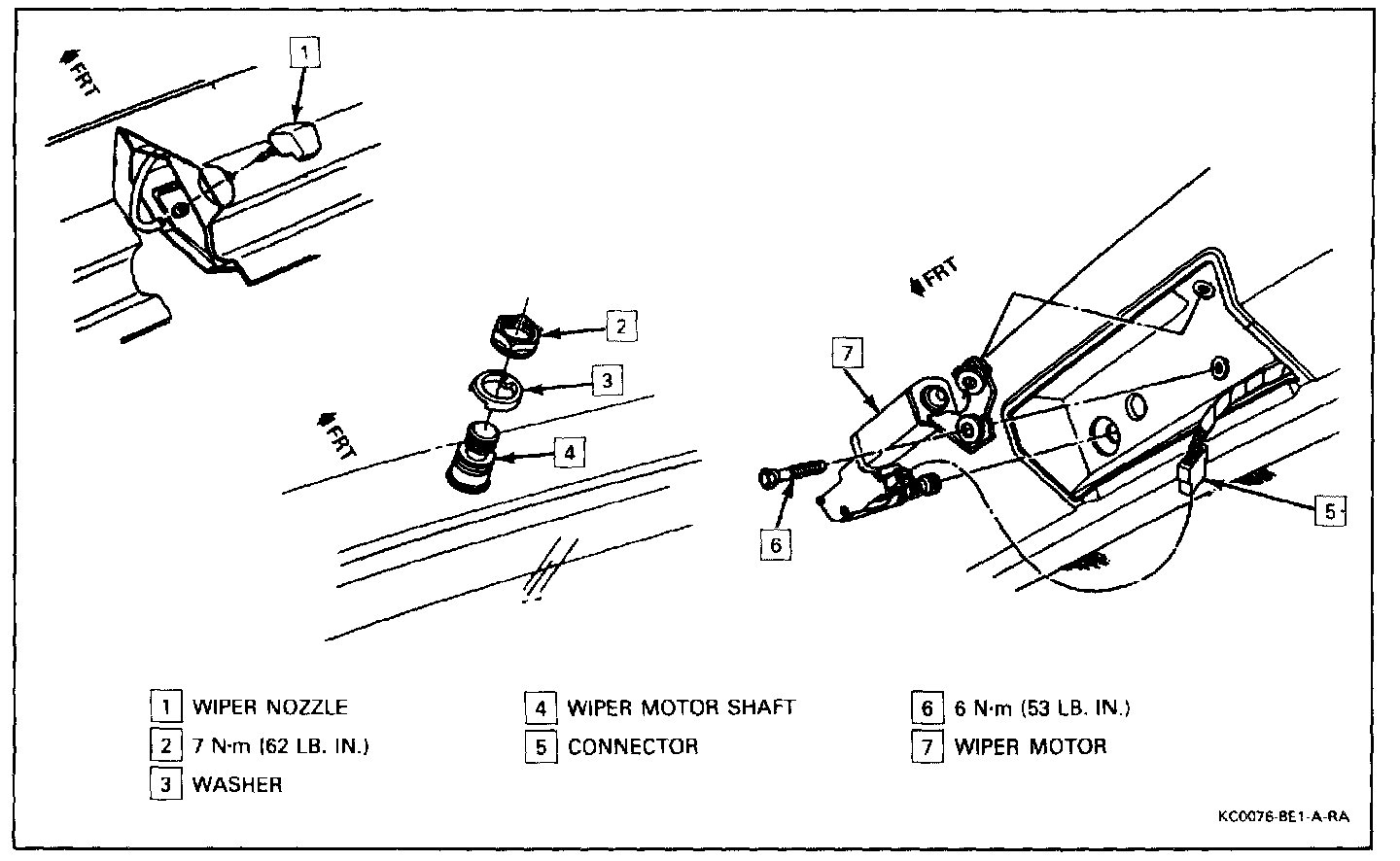

Wiper Motor Replacement






Remove or Disconnect

1. Wiper arm. See "Wiper Arm Removal" Rear Window.
2. Nut on transmission shaft.
3. Lift gate glass opening upper finishing molding.
4. Electrical connector.
5. Upper mounting screw (second screw is a dowel).
6. Rotate motor assembly to 12 o'clock position.
7. Guide motor pivot out of tailgate assembly.

Install or Connect

1. Motor at the 12o'clock position.
2. Guide motor pivot into tailgate assembly.
3. Upper mounting screw.
4. Electrical connector.
5. Lift gate glass opening upper finishing molding.
6. Nut on transmission shaft.
7. Wiper arm. See "Wiper Arm Removal" Rear Window.
