Expansion Block/Orifice Tube: Locations

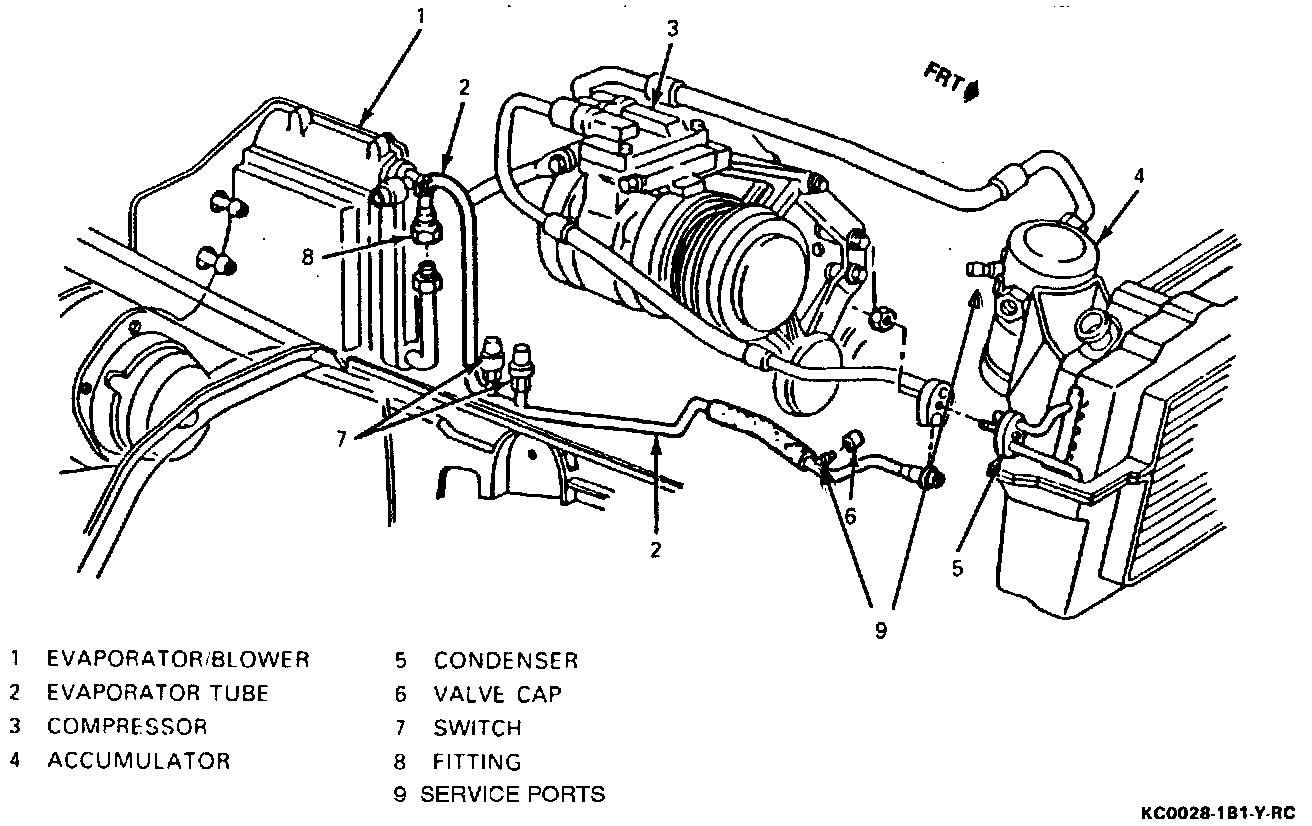

A/C Component Locations:

The Expansion Tube is located in the evaporator inlet pipe (high side line) at the liquid line connection. Access is gained by removing evaporator tube fitting (8).
