Wheel Sensor

Front Wheel Speed Sensor 2WD:

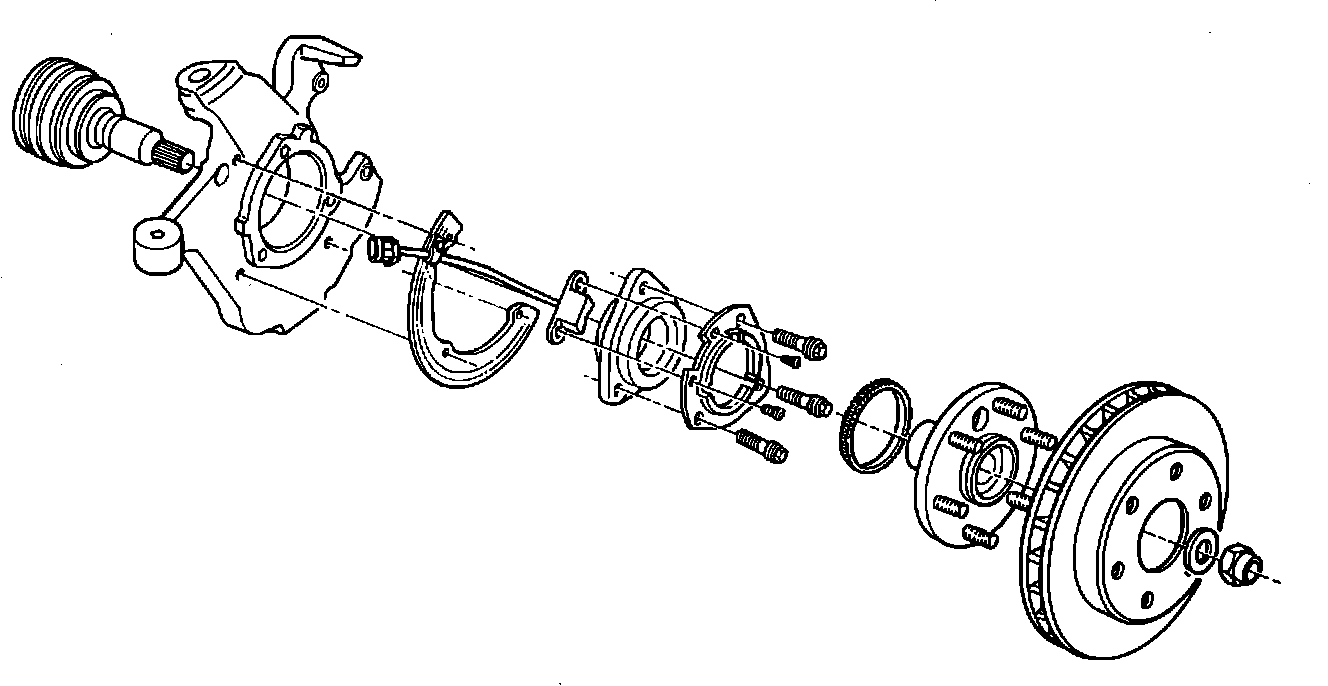

Front Wheel Speed Sensor 4WD:

Rear Wheel Speed Sensor:

Front sensors: Behind brake rotor, mounted to backing plate.

Rear sensors: In brake drum, mounted to backing plate.
