Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1990
>>
Astro Van M L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Modules
>>

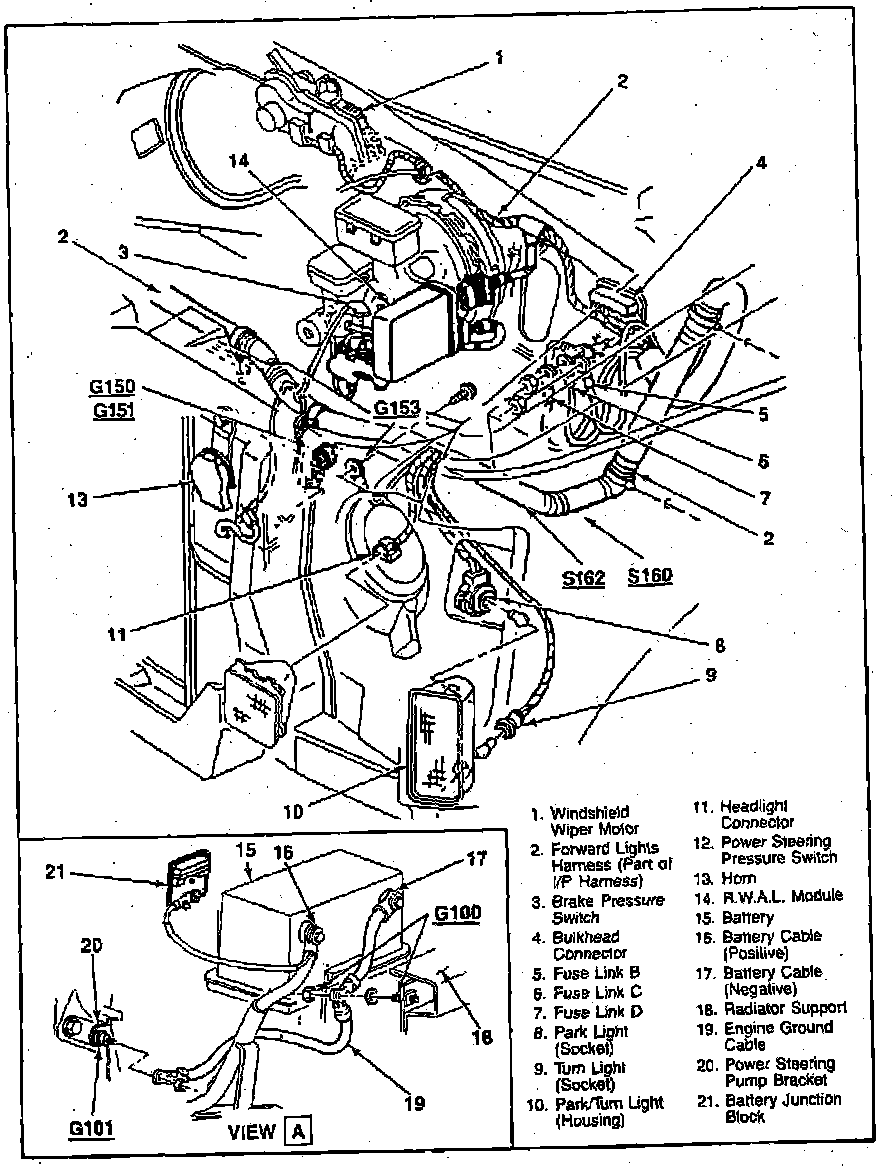

RWAL Module
RWAL Module
RH Side Of Engine Compartment:
Next To Master Cylinder
