Main Unit (Front)

Accumulator Case:

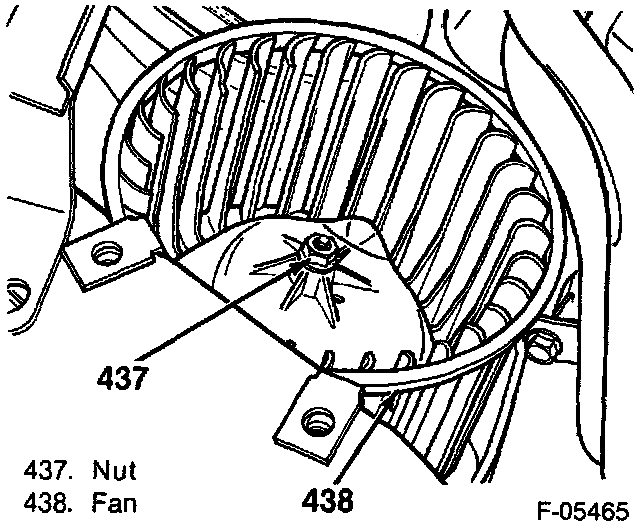

Figure 32-Nut and Fan Removal:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Windshield washer fluid bottle.
3. Electrical connections.
4. Blower motor flange screws.
5. Nut from the blower motor.
6. Fan from the blower motor.
7. Spacer.
8. Blower motor.

INSTALL OR CONNECT
1. Blower Motor.
2. Space.
3. Fan to the blower motor.
4. Nut to the blower motor.
5. Blower motor flange screws.
6. Electrical connections.
7. Windshield washer fluid bottle.
8. Negative battery cable.
