A/C Compressor Does Not Operate
A/C Compressor Does Not Operate

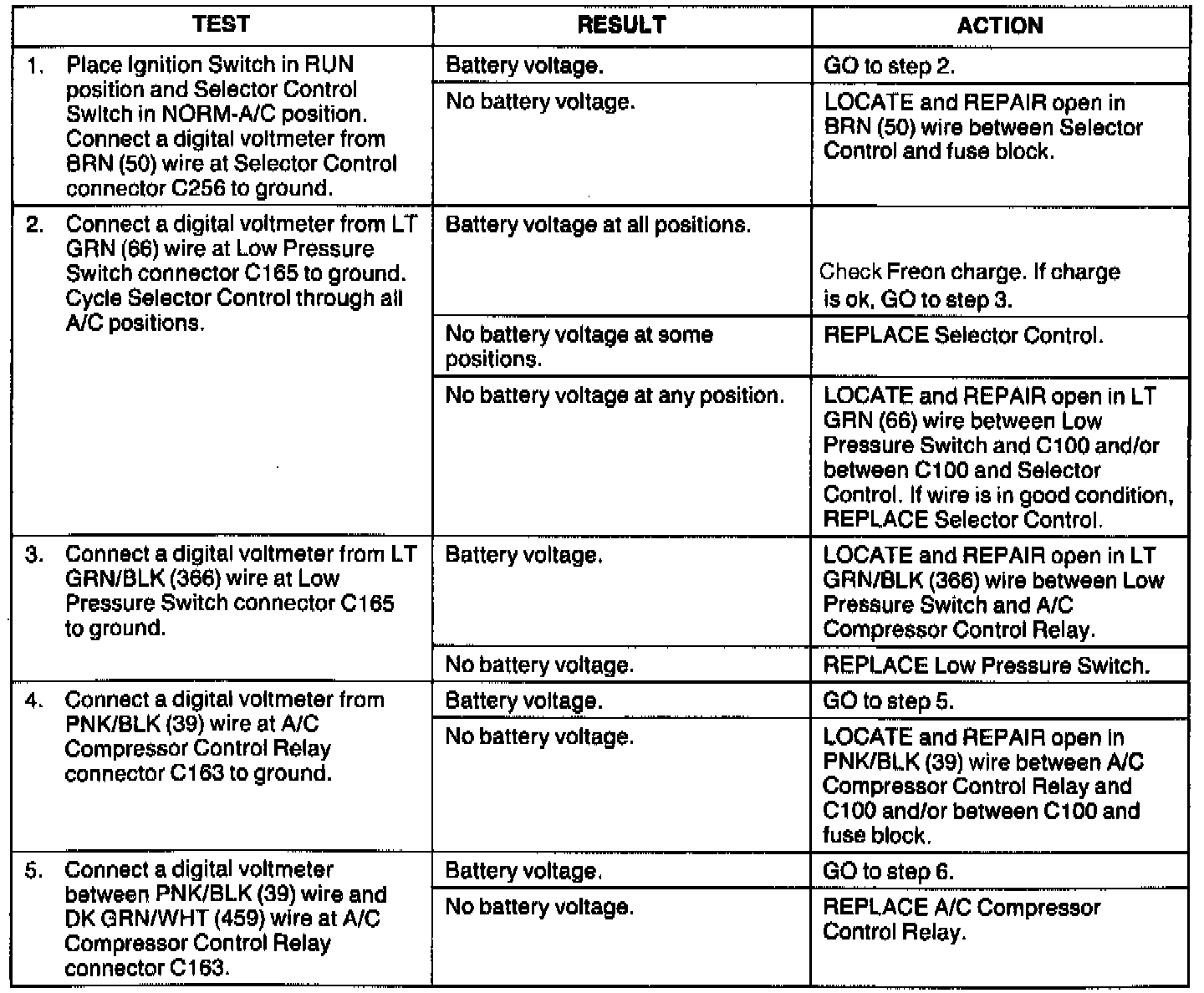

A/C Compressor Inop (1 Of 2):

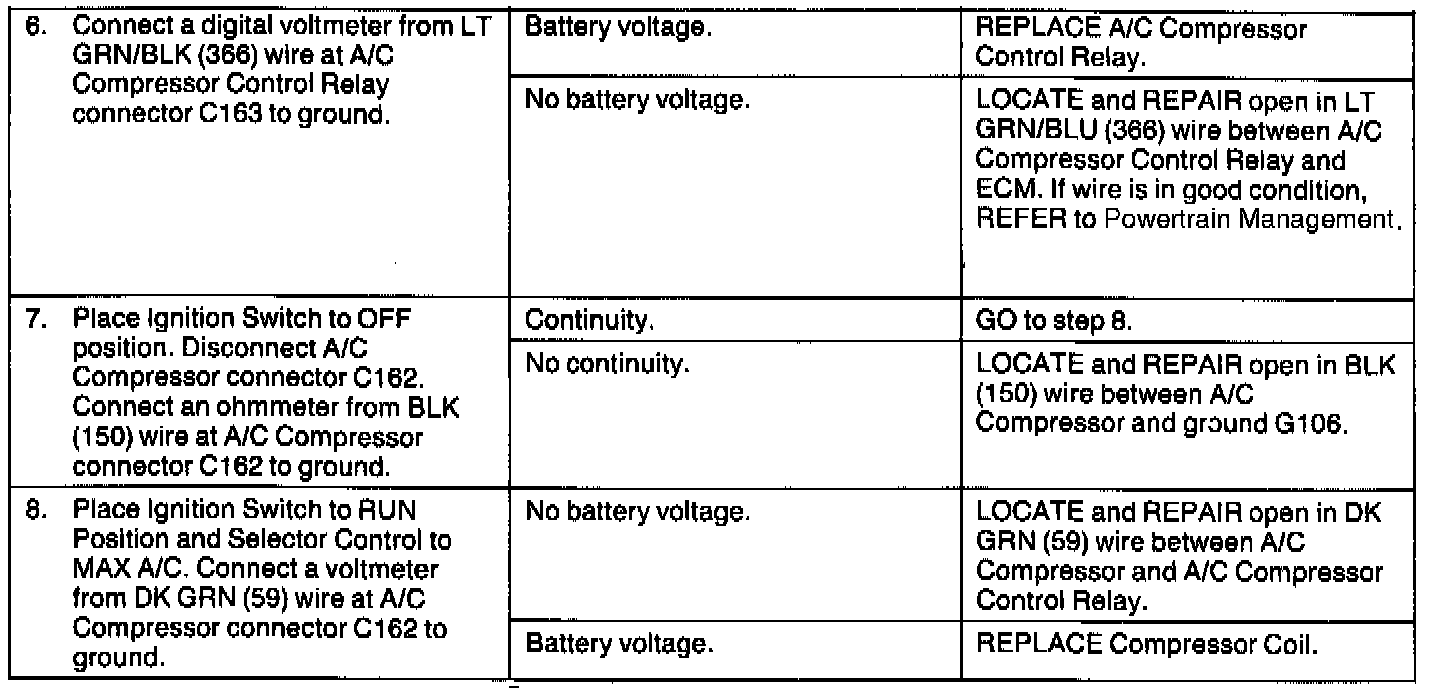

A/C Compressor Inop (2 Of 2):
