Rear Wheel Antilock (RWAL) Module

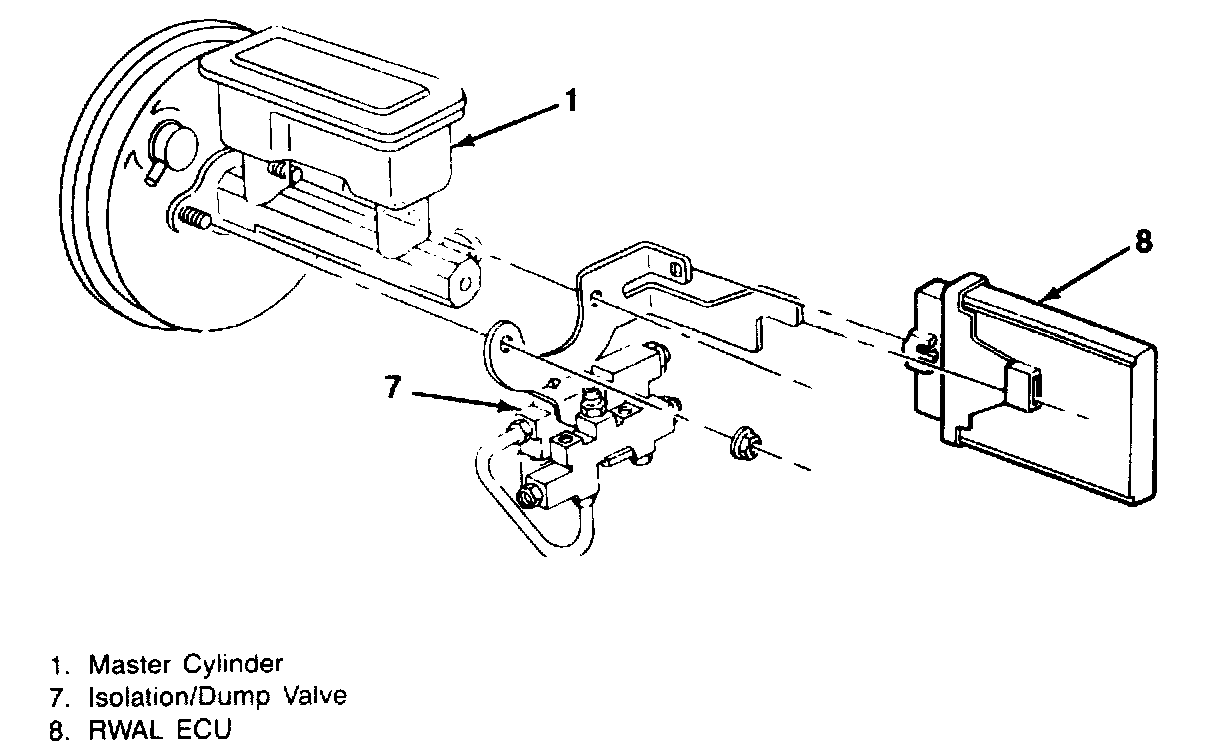

RWAL ECU And Isolation/Dump Valve:





The Electronic Brake Control Module (ECBM) is mounted next to the master cylinder.
