Cranking Signal: Description and Operation

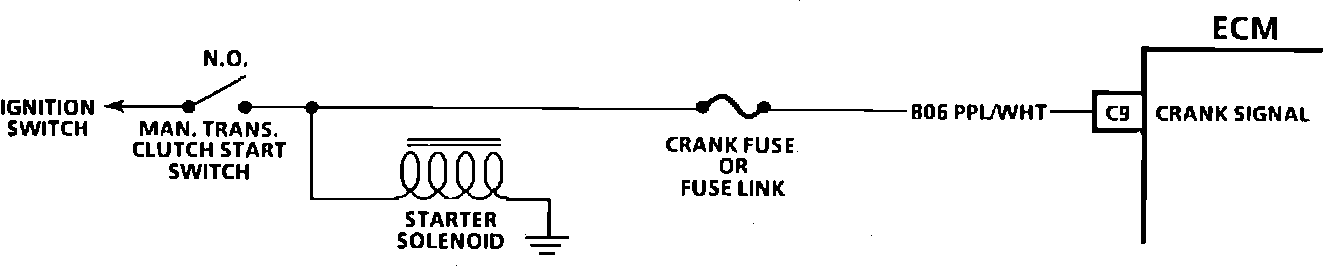

Crank Signal:

The computer uses this signal to tell when the vehicle is in the CRANKING mode. This information is used to allow enrichment and cancel diagnostics while engine is cranking.
