Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

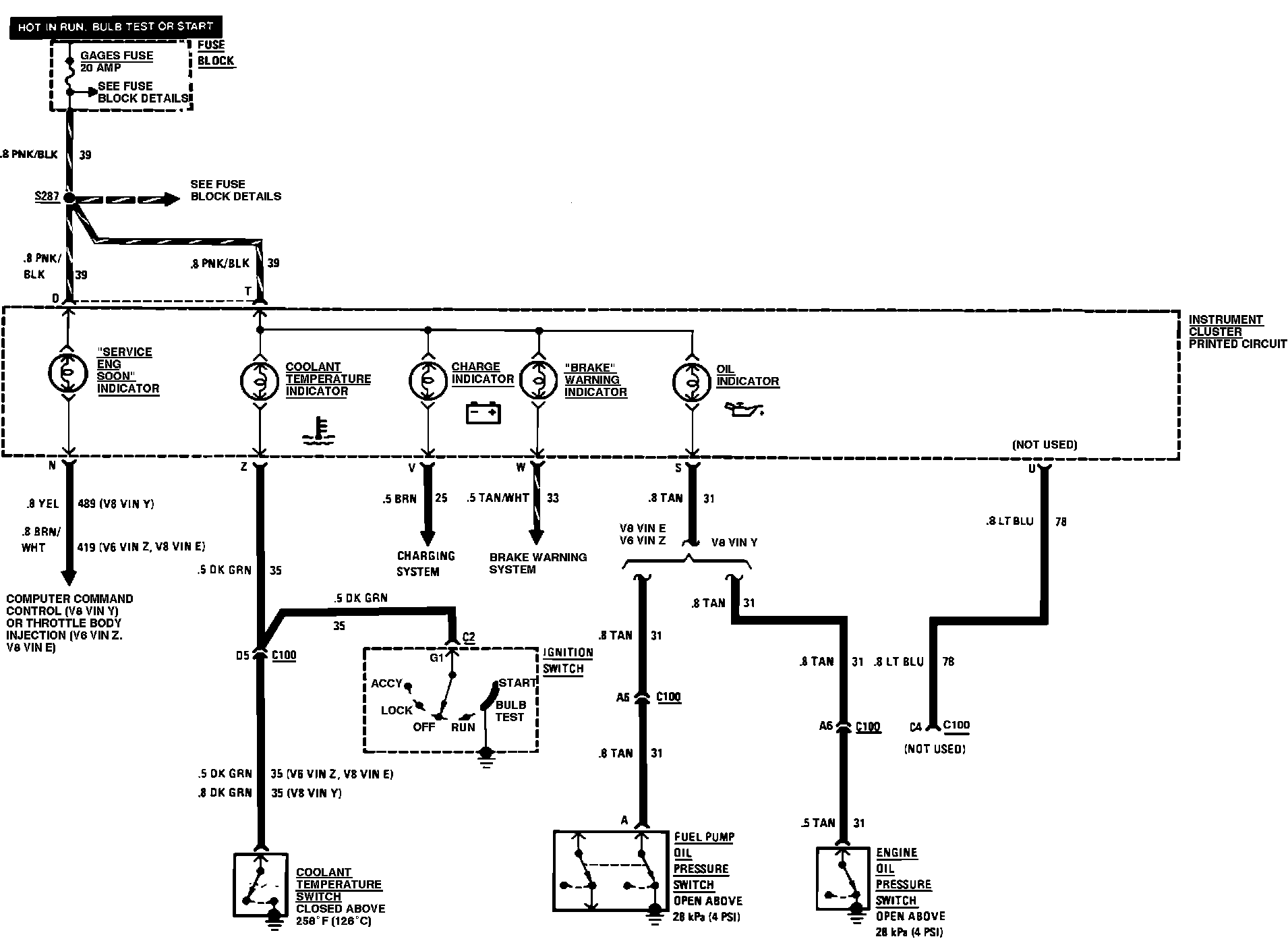

Instrument Panel Indicators. Engine:
