Ignition Controls

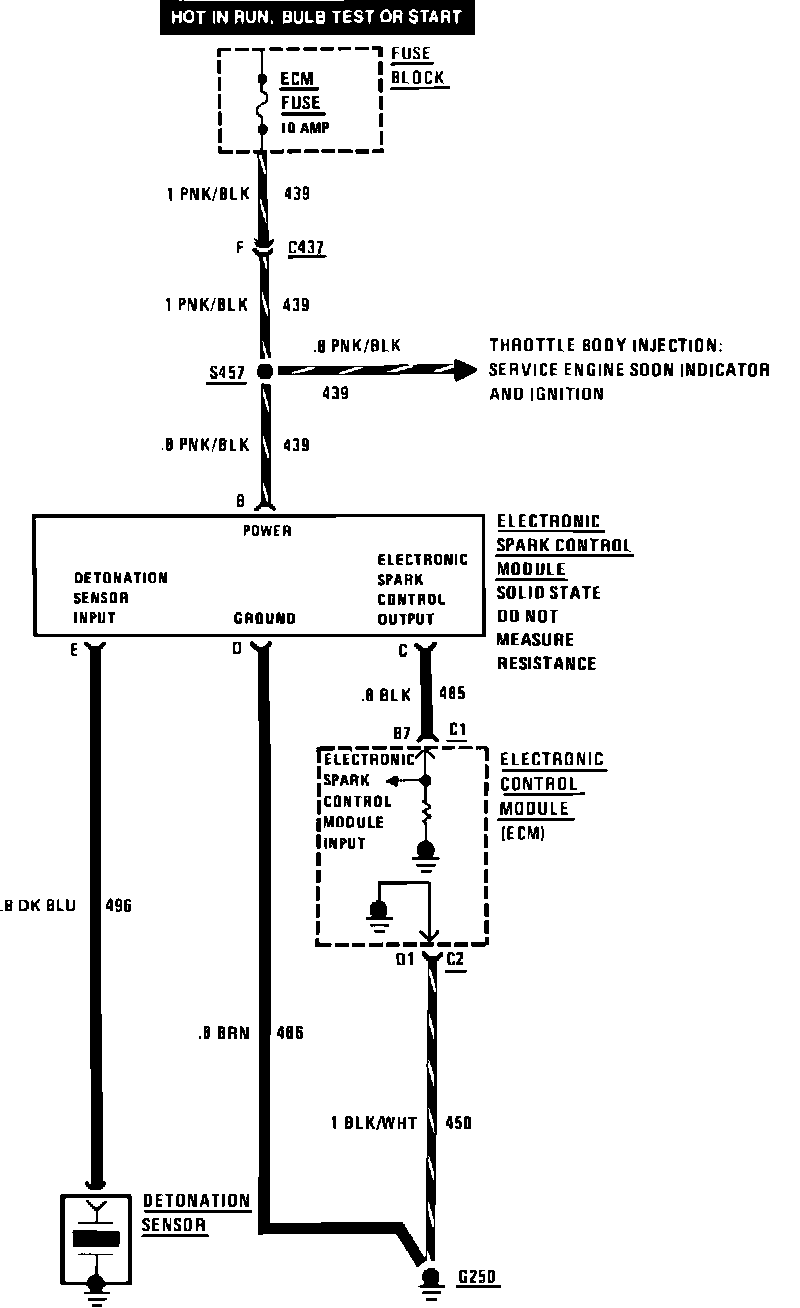

Spark Control:

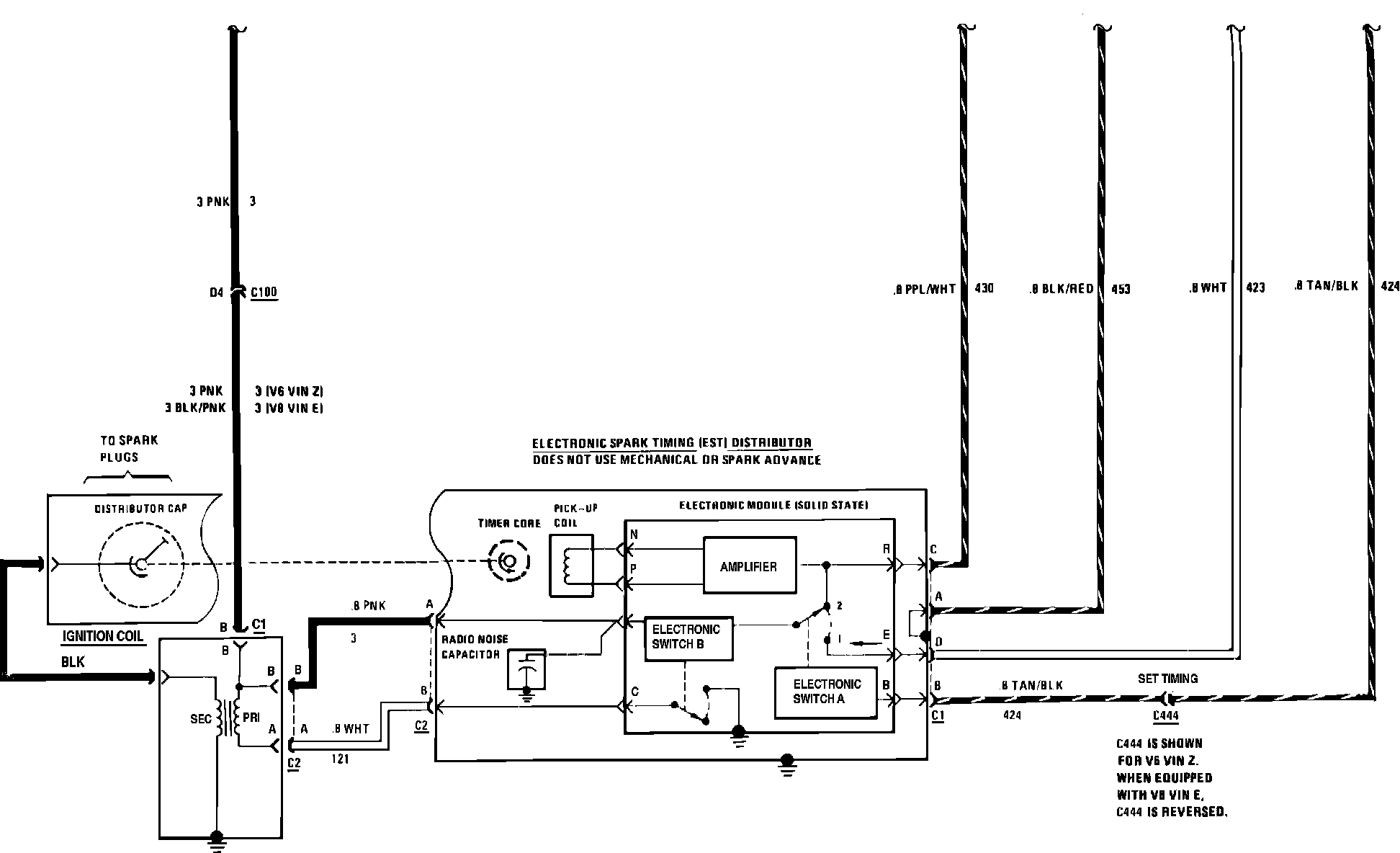

Ignition And Service Engine Soon Indicator:

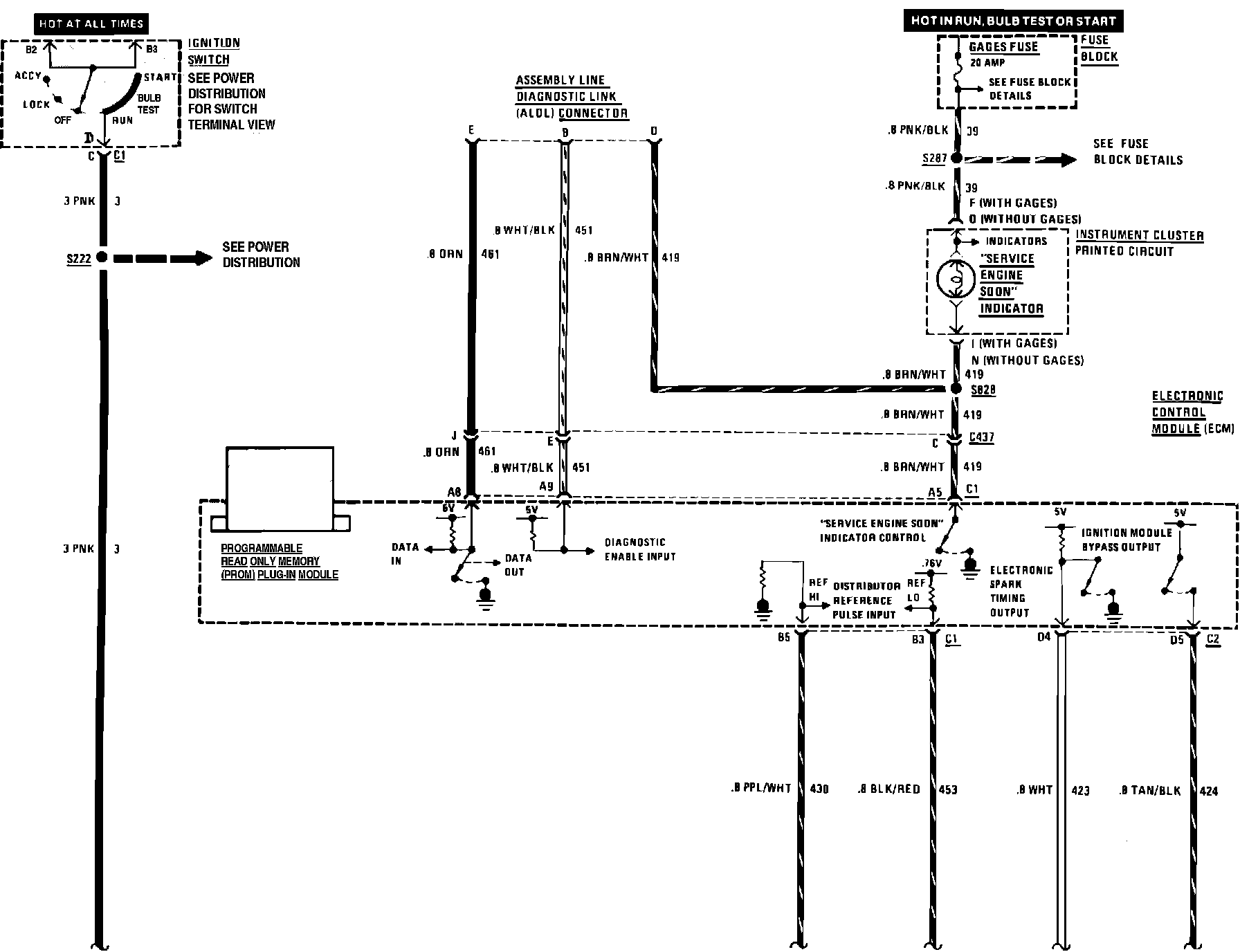

Ignition And Service Engine Soon Indicator:
