Coolant Temperature Sensor / Switch HVAC: Locations

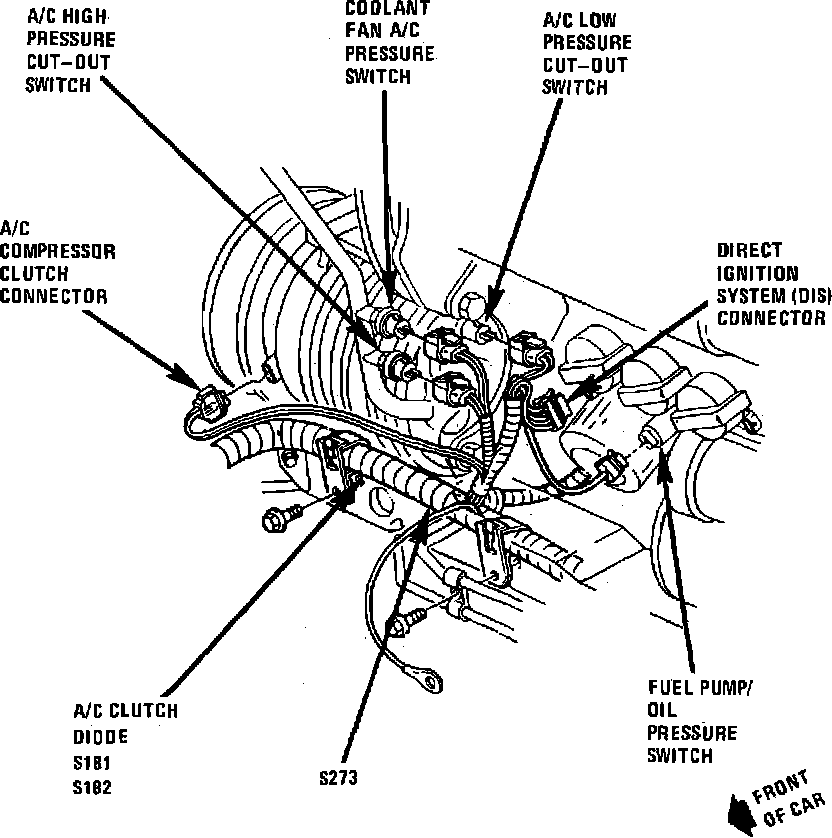

RH Front Of Engine.:




RH Front Of Engine, Left Of Compressor

Applicable to: V6-173/2.8L & V6-192/3.1L
