Brake Fluid Level Switch

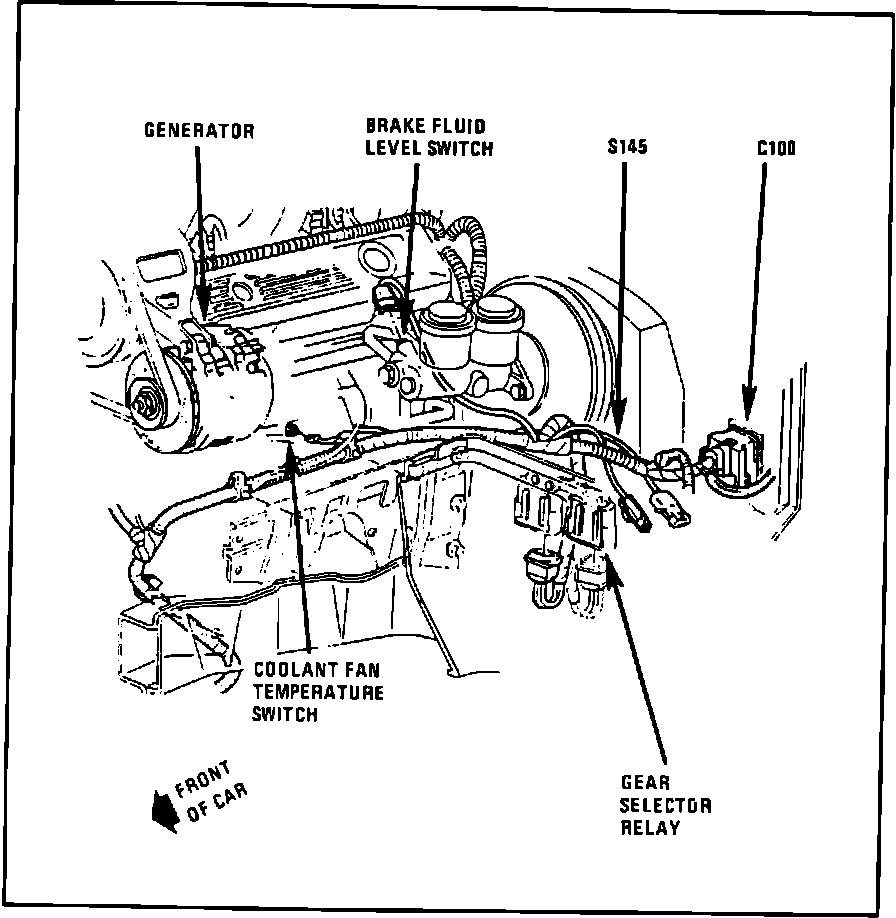

Brake Fluid Level Switch
LH Side Of Engine Compartment.:
LH Front Of Dash, On Brake Master Cylinder
Applicable to: 1990
