Door Lock System - Replacement Components Information
90Chevy32Number: 90-375-10
Section: 10
Date: November 1990
Corp. Bulletin No.: 031060
Subject: INFORMATION ON DOOR LOCK SYSTEM COMPONENTS AND REPLACEMENT COMPONENTS
Model and Year: 1990 CORVETTE

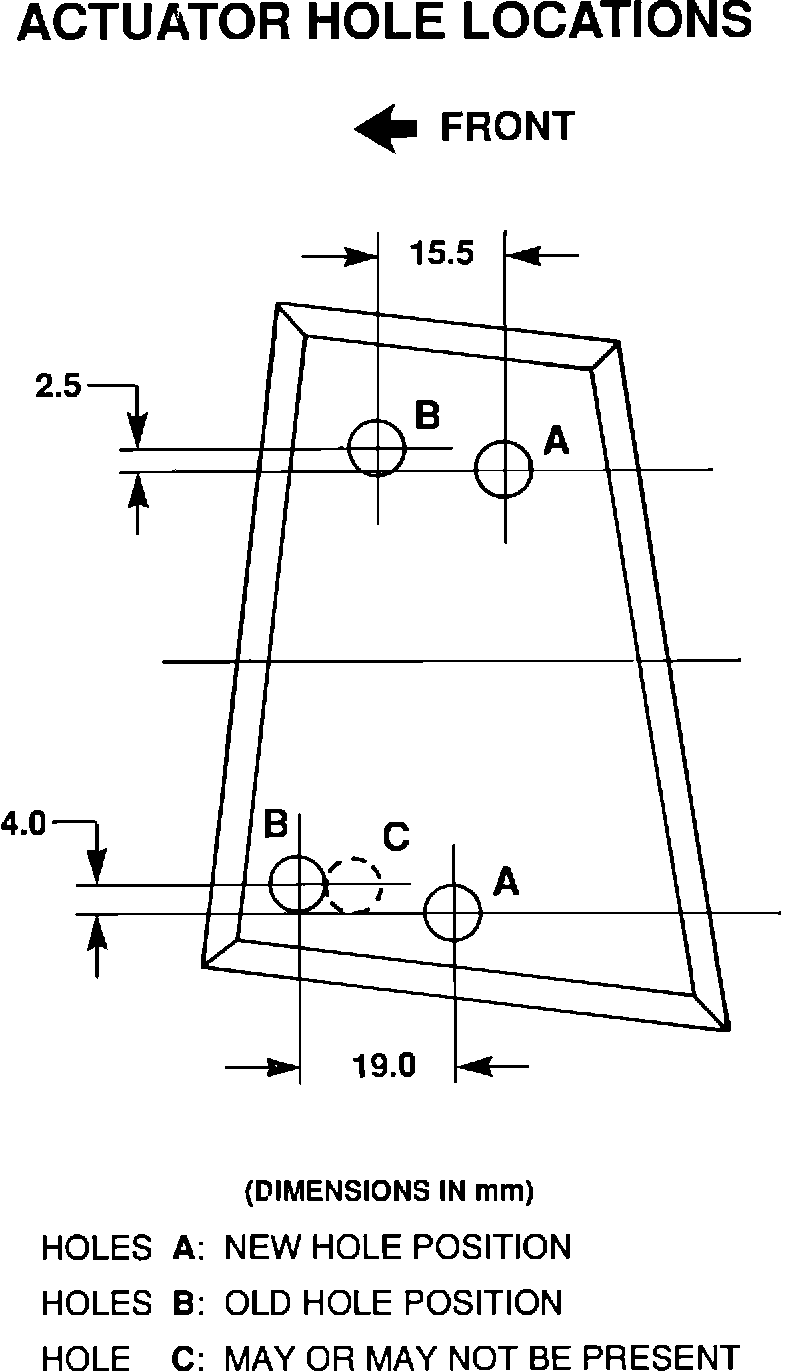

Figure 1:
TO: ALL CHEVROLET DEALERS
Some 1990 Corvette models were built with unique front door accessory mounting plates and power door lock actuator rods. These parts are no longer serviced.
If it becomes necessary to replace these unique parts, it will be necessary to replace them with the earlier parts which are listed below.
Plate Assembly - Side Front Door Accessory, P/N 10086185-6 (left and right)
Rod - Side Front Door Lock Remote Control, P/N 14043193-4
(left and right)
Parts are currently available from GMSPO.
In addition to replacing the above components, it may be necessary to relocate the power door lock actuator on the door inner panel. Figure 1 will illustrate the hole patterns.
- If the actuator is located in the holes marked "A," it will not need to be relocated.
- If the actuator is located in the holes marked "B";
- remove the actuator by drilling out the attaching rivets.
- locate the new attaching holes ("A") using the dimensions on the illustration.
- attach the actuator in the new location using 1/4" X 1/2" peel type rivets.
IMPORTANT: Hole "C" may or may not be present. Relocate holes from "B" locations only.
Labor Operation Number: T1678 Right Side T1679 Left Side
Labor Time: 1.0 Hour Per Side
Trouble Code: 92
